Plastic HDPE PE PP PVC Single Wall Double Wall Corrugated Dwc Sewer Water Drainage Pipe Hose Tube Extrusion Production Making Manufacturing Machine

Product Description

Product Description

PE Single Wall Corrugated Pipe Extrusion Making Machine / Double Wall Corrugated (DWC) Pipe Machine

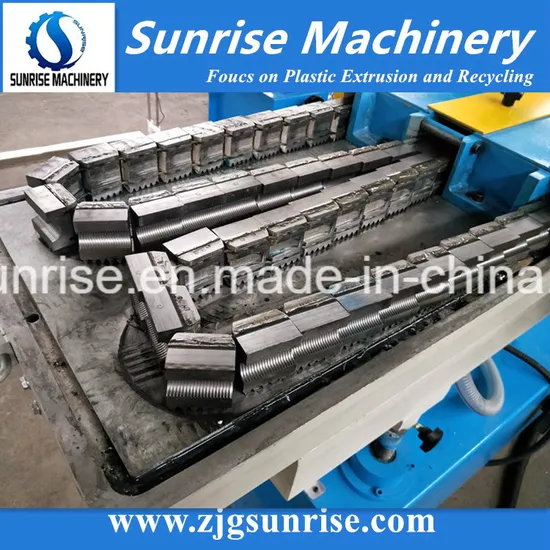

The Single Wall corrugated pipe line includes single screw extruder, extrusion mold, pipe corrugate calibration machine, double winder, etc.
The Double Wall Corrugated Pipe machine includes two set single screw extruders, DWC corrugated machine, cooling tank, cutting machine and stacker. The DWC pipe is mainly used for sewer pipe water drainage.
If you need this machine, please tell us the pipe diameter you want to produce, we will make the right offer for you.
Single Wall Pipe Line

Model	Pipe Diameter (mm)	Motor Power	Speed (m/min)
SJ-45/30	16-32	11	1-10
SJ-50/30	16-40	15	1-12
SJ-65/30	16-63	22	1-12

If you need good pipe production line, please contact us now.
Double Wall Corrugated Pipe Machine DWC pipe machine
PVC pipe machines
PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and wall thickness which is widely used in agricultural water supply, drainage pipe, electric conduit pipe and so on. CPVC pipe machine is available.
Feature of Machines:
1- PLC control, high degree of automation
2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining
Produce process:
PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker
Technical Parameters:

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5	37	18.5	37	55	110
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	300-450	500-600

Main Composition of PVC Pipe Making Machine:

No.	Item	Quantity
1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit)	one set
2	Die and Mold	One set
3	Vacuum calibration water tank	One set
4	Haul-off unit	One set
5	Cutter Unit	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer	one set
C	Crusher	one set
D	Milling machine	one set
5	Belling machine	one set

FOR HDPE PPR pipe machines, we use high efficient single screw extruder to produce. The process is mixing PE / PPR material with color, and feed into extruder for production. There are color line extruder to mark 1 or 2 or 4 color lines according to your requirement. For different diameters, we will use different model machines.
Services:
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.

Detailed Photos
1. Conical Twin Screw Extruder for PVC Pipe Production:
PLC computer control available
2. High Effeicient Sinlge Screw Extruder (L/D 33:1 or 38:1) for PE PPR Pipe Production:
3. Color Line Extruder for HDPE PPR PVC Pipe color line marking
4. Vacuum Calibration Tank ( for PVC HDPE PPR pipe)
(vacuum tank is made of stainless steel SUS304)

6. Cooling Tank for HDPE PPR and Larger Diameter PVC pipe
(made of stainless steel SUS304 with quality glass)
7.Haul off Machine for PVC HDPE PPR pipe
( 2 claw, 3 claw, 4 claw, 6 claw, 8 claw , 10 claw caterpillaer available)

8. Cutting Machines (Planetary Cutter and Non dust cutter)
9. Stacker for PVC HDPE PPR pipe and Winding Machine for HDPE (20-110mm)
10. Laser Printer for printing pipe info

Company Profile
Zhangjiagang Sunrise Machinery Co., Ltd. is specialized in manufacturing kinds of plastic machines. Sunrise Machinery is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.
Our main products as below:
1. PVC / PE / PPR Pipe Production Line
2. PVC window & Door Profile / Panel Production Line
3. Plastic Sheet & Wide Board Production Line
4. Plastic Shredder, Crusher & Pulverizer
5. Waste Plastic Recycling Machines
6. Wood Plastic Profile Production Line
7. High Speed Mixer for PVC

Our Services:
We have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines. We warmly welcome friends from all over the world to visit our factory.
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will offer technical solutions.

With more than 10 years experince and focus on plastic machines, Sunrise Machinery will be your good choice.

---
