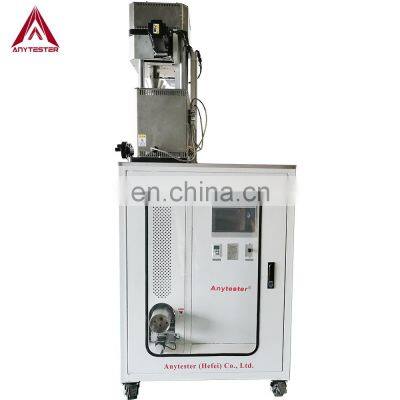

AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll or passes through coagulating bath (optional), heat stretching (optional), relax hot setting (optional) and then be wound onto the winding roll.
Specification
Model
|
| AT226B
|
Number of plunger metering part
|
| 2
|
Structure
| Screw feeder & driving motor
Adjust screw speed to control feeding amount
| 25~500mm, adjustable
|
Material
| 316L stainless steel
| 2mm/min～1200mm/min, settable
|
Designed capacity of stock bin
| 200ml
| 2mm/min～1000mm/min
|
Power of driving motor
| 200W
| 20s±3s, 30s±5s
|
Structure
| Melting & metering
| 99times max.
|
Cylinder material of plunger pump
| 306 stainless steel
| 350% max. while set 200mm gauge length
|
Inner diameter
| 40mm
| AC220V±10%, 50Hz
|
Length
| 100mm
| 380mm×480mm×1450mm (L×W×H)
|
Designed pressure
| 3.5Mpa
| 122kg
|
Packing & Delivery
Packaging
|
|
Package Size
(cm)
| 120*90*180CM
|
Weight
| 350 Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
FOB
CFR(C&F)
CIF
|
50% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
50% T/T in advance,paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
| Amount lower than 50,000usd
|
|
Delivery Time
| 60 days after receiving payment for one container
|
|
|
