Lockable Power Inlet/Powercon Connector/Powercon True1 Connector

US$0.43
100-9,999 Pieces
US$0.39
10,000+ Pieces

Basic Info.

Model NO.
PC3FA
Transport Package
Carton
Specification
φ 23*62
Trademark
suteer
Origin
China
HS Code
8536900000
Production Capacity
100000PCS/Month

Product Description

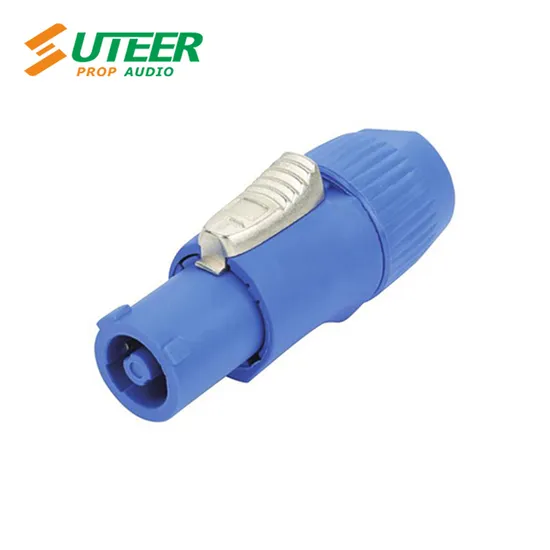

Application / Description Lockable cable connector, power-in, screw terminals, blue. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features Locking 20A / 250V AC appliance coupler Number of electronical contacts: 2 + PE 3 contacts for line, neutral and premating safety ground Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design Specifications
Model PC3FA PC3MA PC3FB PC3MB
type 3-pole power-in female cable connector (Blue) 3-pole Power-in Chassis connector (Blue) 3-pole power-out female cable connector (Grey) 3-pole Power-out Chassis connector (Grey)
Shell PA6 + 30% GR PA6 + 30% GR PA6 + 30% GR PA6 + 30% GR
Contact coating nickel plated nickel plated nickel plated nickel plated
Pole number 2+PE 2+PE 2+PE 2+PE
Type of contact Screw type terminals Soldering Screw type terminals Soldering
Rated current per contact 20A 20A 20A 20A
Rated insulation voltage 250V ac 250V ac 250V ac 250V ac
Cable O.D Ø5.5-Ø12 mm Ø5.5-Ø12 mm Ø5.5-Ø12 mm Ø5.5-Ø12 mm
Packaging Plastic bag Plastic bag Plastic bag Plastic bag
Carton Packaging
Dimension (mm)
390*220*240 (125 pcs) 390*220*240 (125 pcs) 390*220*240 (125 pcs) 390*220*240 (125 pcs)
Packaging Plastic bag, paper box and blister packing are available; Special packaging on request.
