Product Introduction

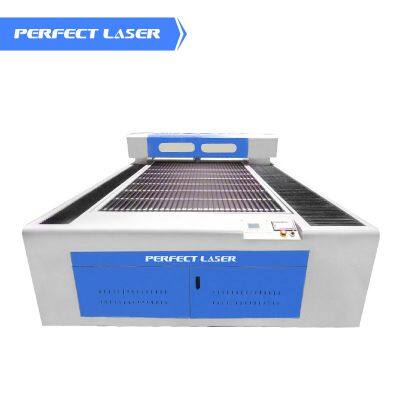

Mixed Co2 steel sheet cutter is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness of this industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm acrylic, 10-20mm wood, 0-10mm MDF.
The steel sheet cutter is a so good choice for user who has demand to cut 1-2mm thin metal material and thick non-metal materials by own this industrial laser cutter. One machine can fulfill all your demand. Saving much cost. It also can be called industrial laser cutter,MDF laser cut,acrylic cutter,steel sheet cutter,metal plate cutter.
Product Features
1) Mix Cutting: The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.
2) The metal plate cutter adopts 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) This metal plate cutter adopts dynamic auto-focusing metal sheet laser cutting head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Equipped with LCD Touch Screen+ USB port+ DSP Offline Control, which make the metal plate cutter can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7) This steel sheet cutter use imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the cutting quality and prolong machine lifetime.
8) Professional Strip work table: meets the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10) Equipped with highly-qualified Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.
11) Red Light Pointer realizes the exact position without laser.
12) Matched Professional cutting software is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.
13)The steel sheet cutter can also called mdf laser cut, acrylic cutter.
Application
This laser cutter and engraver is widely suitable for cutting both metallic and non-metallic materials, such as: 1-2mm stainless steel, 1-3mm carbon steel, 1-28mm acrylic, PVC, 1-10mm MDF, 1-15mm wood and bamboo products, etc.
The laser cutter and engraver is widely used in advertising field, signage marking, electronics, mechanical parts, furniture, automotive, medical, instrument, saw blades and many other metal and non-metal industries.
Technical Data
Product Name
| Laser Engraving and Cutting Machine
|
Model
| PEDK-13090M
| PEDK-130250M
|
Working Area
| 1300x900mm
| 1300x2500mm
|
Laser Power
| 150w
| 160w/180w/220w/260w/300w
|
Laser Type
| CO2 Sealed Laser Tube, 10.6um
|
Transmission Method
| Belt Transmission
|
Driving System
| Chinese Top Brand “LEADSHINE” Step Motor and Driving System
|
Cooling Type
| Water Cooling
150w-180w Machine use CW-5000
260w-300w Machine use CW-6000
|
Working Table
| Thicken Strip Working Table
|
Laser Output Control
| (0-100% Set by Software )
|
Smallest Character Engraving
| Chinese: 2.0mmx2.0mm, English Letter: 1.0mmx1.0mm
|
Highest Scanning Precision
| 4000DPI
|
Positioning Accuracy
| ±0.02mm/m
|
Positioning Speed
| 20m/min
|
Control Software
| Perfect Laser Professional Mixed Laser Cutting Machine Software
|
Guarantee
| 12 month guarantee for whole machine
10 month guarantee for laser tube
|
Training
| VCD Training Video for Easy Learning
Engineer Overseas Installation & Training is also Available
|
>>
