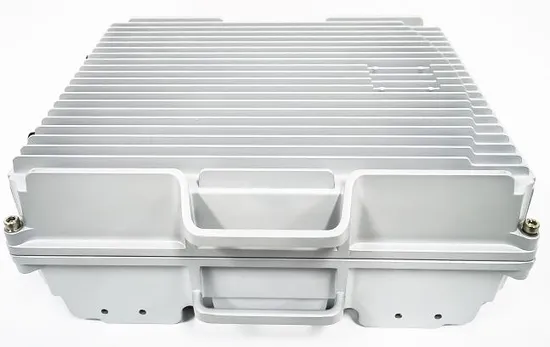

5g Independent Networking Outdoor IP Mesh Station

Product Description

Product Description
ZKManet7561 is a wireless communication product designed specifically for achieving 5G independent networking capabilities, with low power consumption, strong customizability, highly integrated 5G independent networking capabilities, and reliable wireless coverage.
ZKManet7561, with its highly integrated design and powerful features, has become an ideal choice for the private network communication market. It supports dual channel antenna configuration, operates in the 1.4GHz frequency band (customizable 400M/600M/1.4G/1.8G), and supports 5MHz, 10MHz, and 20MHz bandwidths. Especially suitable for wireless coverage needs in industries such as smart cities, intelligent transportation, subways, tunnels, mines, oil, ports, armed police, civil defense, emergency response, etc., providing users with efficient and reliable wireless communication solutions.
Features Highly integrated
Based on TD-SCDMA technology
MIMO dual-stream beamforming technology
high safety USIM quintuple authentication and encryption
Supports GPS/Beidou
IP 67
1 LAN Port
2 Power Indicator
3 GPS Indicator
4 Running Indicator
5 LAN1 Indicator
6 LAN 2 Indicator
7 Power Input Port
8 Antenna Interface-Type N
9 Antenna Interface-Type N
Product Parameters

RF Characteristics
System Mode	TDD LTE
Frequency	1447-1467MHz (400M/600M/1.4G/1.8G Customizable)
RF Channel	2T2R
Output Power	2*10W
3GPP	Release 9
Sensitivity	≤-101.5dBm
Network Characteristics
Authentication	USIM Quintuple Authentication
Up/Downlink rate	40/80Mbps
Time Slot Ratio	cfg0,1,2,3 … 10
Maximum Concurrent	128
Encryption	AES
Electrical Characteristics
Working Voltage	AC 100-240V
Power Consumption	≤150W
Physical Characteristics
Weight	15kg
Dimensions	370*295*150mm
IP Rating	IP66
Storage Temp.	-45ºC~85ºC
Working Temp.	-40ºC~75ºC

Company Profile
Zhongke Lianxun (Shenzhen) Co.,Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, military and police tactical investigation communication systems, military and police non combat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, military, forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national military standard system that comply with ISO9001 standards, and strictly produces products in accordance with national military standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
Our Patents
Test Equipments
Our Advantages

---
