High-Pressure Plastic Molding Machine with 16kw Heating Power

Product Description

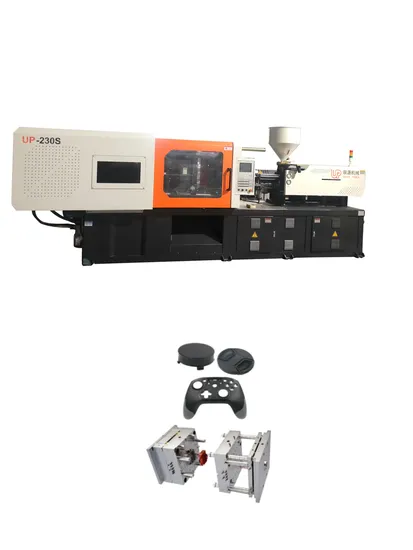

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd. Product Description: Introducing our advanced China servo injection molding machine designed to meet the highest industry standards. Key features include:
Modulus of Capacitance: Precise positioning, size, and maximum allowable modulus of capacitance for the guide pillar (Green column).
Nozzle Parameters: Spherical diameter, aperture, outer diameter, and maximum extension length for optimal performance.
Code Mold Parameters: Hole and slot size for efficient mold coding.
Ejection Mechanism: Ejection point position, ejector rod diameter, force, and stroke for seamless mold ejection.
Mold Opening Stroke: Ensures maximum opening distance for enhanced productivity.
Experience precision and efficiency with our standard injection molding machine. Upgrade your production capabilities with our reliable equipment.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
