Advanced Plastic Household Box Mold Machine

Product Description

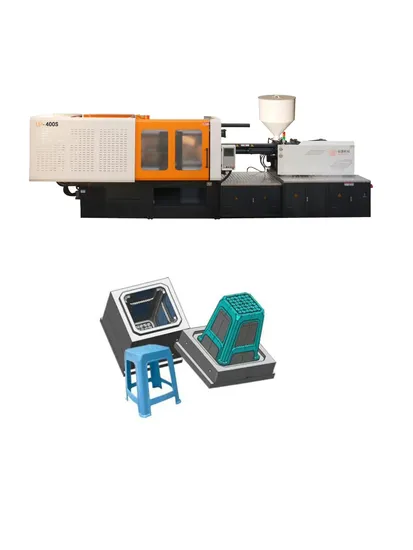

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key parameters include:
Modulus of Capacitance: Specifies the position, size, and maximum allowable modulus of capacitance, along with the minimum closure thickness of the guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Defines mold hole and slot size for accurate molding results.
Ejection Mechanism: Details the ejection point position, ejector rod diameter, and optional ejection force and stroke for smooth part ejection.
Mold Opening Stroke: Indicates the opening stroke and maximum distance for efficient mold operation.
Experience precision and reliability with this standard injection molding machine designed to meet industry requirements.

Technical Parameters	Model UP-420T
Injection Unit	A	B	C
Screw diameter (mm)	70	75	80
Shot Volume (cm3)	1385	1590	1810
Injection weight (g)	1247	1431	1628
injection pressure (Mpa)	199	173	152
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	4200
Open stroke (mm)	740
Max Mold height (mm)	750
Min Mold height (mm)	280
Space between tie bars(mm)	745x745
Ejector force (KN)	110
Ejector stroke (mm)	180
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	39.7
Heating power (KW)	29
Machine dimension (M)	7.35x1.95x2.4
Machine weight (T)	15.4
Oiltank cubage (L)	650

---
