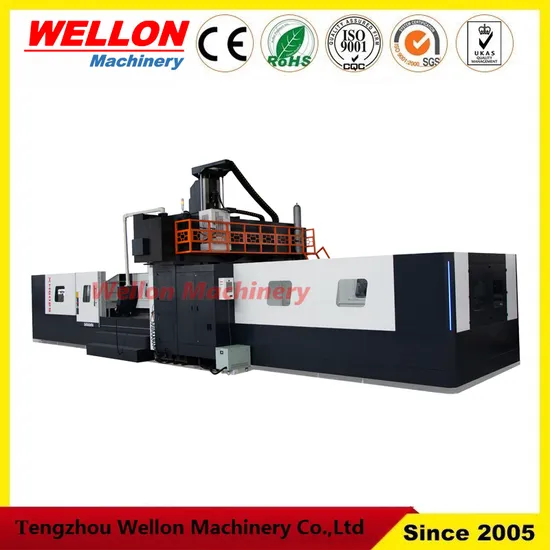

Wellon Xh5032 Heavy Duty CNC Double Column with CE Certificate/CNC Gantry Milling Xh5032

US$150,000.00
1-2 Pieces
US$70,000.00
3+ Pieces

Basic Info.

Model NO.
XH5032
Type
Gantry Milling
Structure
Gantry
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
5000X3000
Table Travel X
5000
Table Travel Y
3700
Table Travel Z
1250
Spindle Speed
6000
Max Loading Capacity
15
Distance Between Two Column
3200
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
100 PC/Month

Product Description

Detailed Photos

Product Parameters

Item Unit XH5032
X axis travel mm 5000
Y axis travel mm 3700
Z axis travel mm 1250
Spindle nose to worktable mm 250-1500
Distance between two column mm 3200
Leadscrew diameter mm 80/80/63
Linear guideway width mm 55/55/Rectangle
Worktable Length mm 5000
Worktable width mm 3000
T slot qty-width*distance mm 15-28*200
Max loading capacity Ton 15
Spindle speed rpm 6000/belt
Spindle motor power kw 30
Fast moving speed m/min 10/10/10
Cutting speed mm/min 1-6000
Spindle taper BT50
X/Y/Z axsis motor torque Nm 60/40/40
Tool Magazine Capacity pcs Disc/24
Positioning accuracy mm 0.025/0.020/0.018
Repeat accuracy mm 0.015/0.012/0.012
Length mm 12440
Width mm 6570
Height mm 5770
Weight kg 48000

Standard accessories:
Mitsubishi M80B controller
Spindle speed 6000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
Tools and tool box
Optional accessories:
Spindle oil cooler
CTS 20bar
CTS 30bar
Reneshaw tool probe TS27R
Reneshaw workpiece measurement device OMP60
Gear head
Manual angle head
Auto angle head
Chain type ATC 32 tools
Chain type ATC 40 tools
HEIDENHAIN scales/1m
4TH Axis rotary table 255mm+tail stock+hydraulic station
5TH Axis rotary table 255mm+hydraulic station
