Basic Info.
Model NO.
QK1332 QK1338 QK1343 QK1350
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Name
QK1332 Pipe Threading Lathe Machines Price
Swing over cross slide
610mm
Distance between centers
1500/3000mm
Pipe threading range
190-320mm
Spindle speed steps
VF. 3 steps
Spindle speed range
10-280rpm
Turret/tool post
NC turret 4 position
Tool shank size
40 X 40mm
Z axis travel
1250/2750mm
Transport Package
Plywood Case
Specification
according to machine model
Trademark
Luzhong Machine Tool
Production Capacity
200 Set Per Month
Packaging & Delivery
Package Size
500.00cm * 208.00cm * 208.00cm
Package Gross Weight
11500.000kg
Product Description

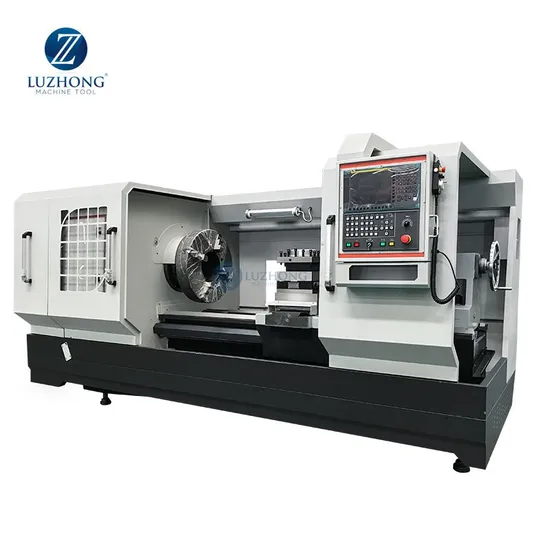

High precision Screw Cutting Lathe QK1332 QK1338 QK1343 QK1350 Pipe Threading Lathe Machines Price
Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Application:
CNC Heavy Duty Oil Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard Accessories:
Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile
hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Product main technical parameters:
ITEMS | UNIT | QK1332 | QK1338 | QK1343 | QK1350 |
Capacity | Swing over bed | mm | Ø1000 | Ø1000 | Ø1000 | Ø1200 |
Swing over cross slide | mm | Ø610 | Ø610 | Ø610 | Ø710 |
Distance between centers | mm | 1500 | 1500 | 1500 | 1500 |
Pipe threading range | mm | Ø190-320 | Ø190-380 | Ø270-430 | Ø330-510 |
Width of bed way | mm | 755 | 755 | 755 | 755 |
Max.load capacity | T | 5 | 5 | 5 | 5 |
Spindle | Spindle bore | mm | Ø330 | Ø390 | Ø440 | Ø520 |
Spindle speed steps | - | VF 3 steps | VF 3 steps | VF 3 steps | VF 3 steps |
Spindle speed range | rpm | 10-240 | 5-205 | 5-205 | 5-205 |
Chuck size | mm | Ø780 | Ø850 | Ø100 | Ø1000 |
Chuck type | - | 4 jaw electric | 4 jaw electric | 4 jaw electric | 4 jaw electric |
Turret | Turret type | - | NC Turret 4 station | NC Turret 4 station | NC Turret 4 station | NC Turret 4 station |
Tool shank size | mm | 40x40 | 40x40 | 40x40 | 40x40 |
Carriage | X axis travel | mm | 500 | 500 | 500 | 500 |
Z axis travel | mm | 1250 | 1250 | 1250 | 1250 |
X axis rapid traverse speed | mm/min | 4000 | 4000 | 4000 | 4000 |
Z axis rapid traverse speed | mm/min | 4000 | 4000 | 4000 | 4000 |
Tailstock | Tailstock quill diameter | mm | Ø140 | Ø140 | Ø140 | Ø140 |
Tailstock quill taper | - | MT#6 | MT#6 | MT#6 | MT#6 |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
Motors | Main spindle motor | kW | VF.22 | VF.22 | VF.22 | VF.22 |
Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 |
Accuracy | Positioning accuracy | mm | 0.020 | 0.020 | 0.020 | 0.020 |
Repositioning accuracy | mm | 0.010 | 0.010 | 0.010 | 0.010 |
Dimensions | Width x Height | mm | 2100X2100 | 2100X2100 | 2100X2100 | 2100X2100 |
Length | mm | 4600 | 5000 | 5000 | 5000 |
Weight | Net weight | T | 11.5 | 12 | 13 | 15 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
