Basic Info.
Model NO.
JH18D Mini Excavator
Usage
Special Excavator, Marine Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
ISO9001: 2000
Overall Dimension
3865X1050X2215mm
Min.Ground Clearance
210mm
Swing Radius at Tail
1125mm
Transport Package
Naked Package
Specification
Curb weight: 1900KG
Production Capacity
50units Per Month
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
Product Description

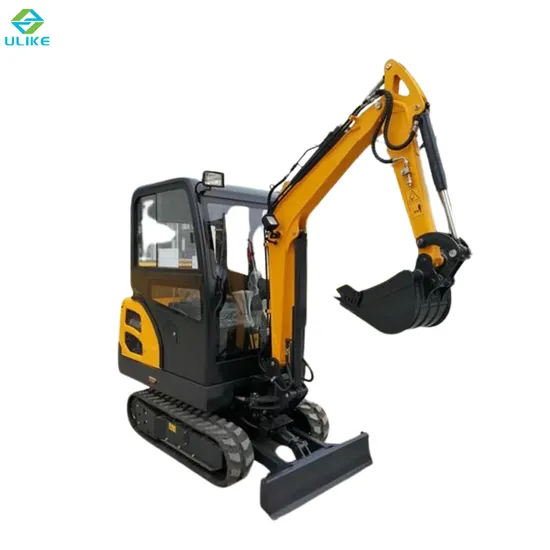

High Quality Rugged Mini Excavator with Heavy-Duty Tracks for Rough Terrain Factory Outlet
Compact Size: Mini excavators are small and maneuverable, making them ideal for tight spaces and urban environments where larger equipment cannot operate efficiently.
Versatility: They can be equipped with various attachments such as buckets, breakers, augers, and grapples, allowing them to perform multiple tasks like digging, grading, drilling, and demolition.
Lower Operating Costs: Mini excavators typically consume less fuel and have lower maintenance costs compared to larger excavators, making them more cost-effective for smaller projects.
Ease of Transportation: Due to their smaller size and lighter weight, mini excavators are easier to transport between job sites using smaller trailers and vehicles.
Reduced Ground Damage: Their lighter weight and compact design result in less ground disturbance and damage, which is particularly beneficial when working on delicate surfaces or landscaped areas.
Improved Accessibility: Mini excavators can access areas that larger machines cannot, such as residential backyards, indoor spaces, and other confined areas.
Enhanced Precision: The compact size and advanced hydraulic systems of mini excavators provide greater control and precision for tasks requiring fine detail work.
Operator Comfort and Safety: Modern mini excavators are designed with comfortable operator cabins, intuitive controls, and safety features to reduce operator fatigue and enhance safety on the job site.
Eco-Friendly: Due to their smaller engines and lower fuel consumption, mini excavators tend to have a smaller carbon footprint, contributing to environmental sustainability.
Quick and Easy Training: Operators can be trained to use mini excavators more quickly compared to larger machinery, which can help in reducing downtime and increasing productivity.
Product Parameters
Engine | Emission Standard | EPA4/EURO 5 |
Make | PERKINS |
Model | 403J-11 |
Power /Rotation speed | 14.7kw@2200rpm |
Number of cylinder | 3 |
Track System | Maximum Travel speed | 2.5km/h |
Width of track shoe(Rubber & steel track) | 230mm |
Performance Parameter | Standard bucket capacity | 0.06m³ |
Swing speed | 10~12 rpm |
Max. Grade ability | 35° |
Max. Bucket digging force | 14KN |
Max. Arm digging force | 10KN |
Hydraulic system pressure | 16Mpa |
Machine weight | 1900kg |
Machine Size | Overall dimension (LxWxH) | 3865x1050x2215mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 820mm |
Min.Ground clearance | 210mm |
Swing radius at tail | 1125mm |
Working Range | Max. Digging height | 3365mm |
Max. Dumping height | 2385mm |
Max. Digging depth | 2050mm |
Max. Vertical digging depth | 1725mm |
Max. Digging radius | 3860mm |
Min .swing radius | 1720mm |
Max. Lifting height of blade | 230mm |
Max. Cutting depth of blade | 275mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |
Detailed Photos
Factory Photos
Packaging & Shipping
Packing and Shipping 01 CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping ;02 FLAT RACK: Often used to ship medium equipment,max load-bearing is 35tons.03 BULK CARGO SHIP: Which is better for bigger equipment,no need disassemble.04 RO - RO :The machine is driven directly into the ship and does not need to be disassembled. Company Profile
Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery, parts and so onWe Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
After Sales Service
Before-Sale | After-Sale |
1. Airport pickup, Booking hotel. | 1. Visiting the famous scenic spots in zhengzhou. |
2. Visiting our company yard, Enjoying Free test drive. | 2. 1-Year warranty for All the equipments |
3. Different machines to compare with each other. | 3. A lifetime of parts and technical support. |
4. Interpreting mechanical configuration information in detailed. | 4. Fast parts deliver and quick reply for any feedback . |
