Basic Info.
Type
Conveying X-ray Detector
X-ray Source
Standard: 150W, 80kv. Optional: 350W,100kv
Detection Tunnel Size
400mm (W) X 200mm (H)
Conveyor Speed
20-60 M/Min
Bearing Capacity
Standard: ≤5 Kg
Best Detection Accuracy
SUS Ball: 0.4mm,Glass and Ceramic Ball:2.0mm
Screen
17 Inch Full Color Touchable Screen
Portective Mode
Lead-Free Food Grade Soft Curtain
Conveyor
Food Grade PU Belt
Transport Package
Export Wood Case
Specification
440mm(W)*200mm(H)
Origin
Dongguan, Guangdong, China
Production Capacity
50 Units/Month
Product Description

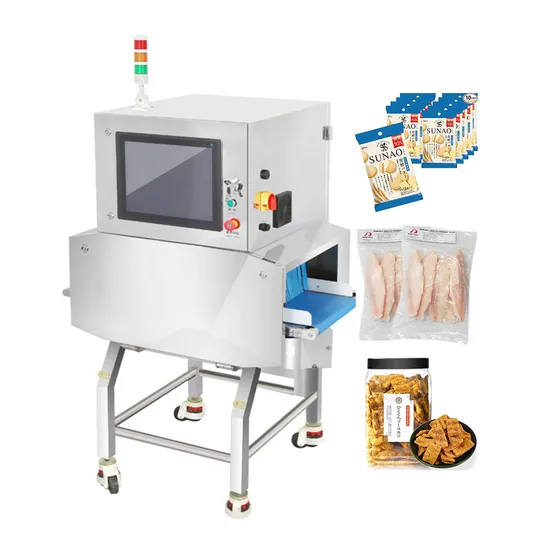

JZXR XR-500D High Quality Digital Fast X-Ray Inspection System for Food Industry at Affordab
Introduction:
Juzheng X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.
- Safety in design
- Easy-of-use
- Simple maintenance
- Low cost & Fast dispatch
- Professional and timely after-sales service
XR-500D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
WHAT THE SPECIFICATIONS OF MACHINE?
Model# | XR-500D | |
X-ray source | Standard: 150W, 80kV. Optional: 350W,100kV | |
Tunnel size(W*H) | 440*200mm | |
Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
Conveying speed | 20-60 m/min |
Screen | 21.5inchfullcolortouchablescreen |
Interface for data | LAN port,USB port |
Working environment | Temperature:-10-40ºC(Cooling:industrial air condition),Humidity:30%-90%,No frost(humidity control:dehumidifier) |
X-ray leakage | <1µSv/hour |
Protective mode | Protective soft curtain(removable) |
Alarm | Standard: Sound and light alarm Optional: Stop / Rejection system |
Power supply | AC220V ±10% 50/60Hz,1.5kVA Max |
Material | SUS304 |
Protective Mode: | 6 layers of non-lead food grade soft curtain |
About Us Send Inquiry View More Products X-ray Inspection System for Big Packaged Food High Precise checkweigher with Rejector XR-980 Conveyor Metal Detector with Rejector XR-180C Vertical Fall Metal Detector
FAQ
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
4.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
5. What's your main product?
We professional in Metal detector. X ray machine and other related electronic products and machines.
>>
