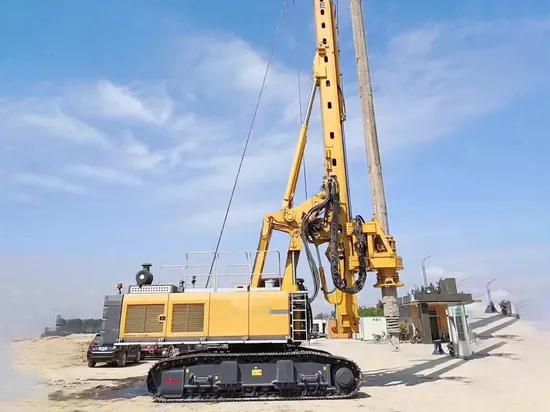

Drilling Machine Xr550d Rotary Drilling Rig 132m Depth Piling Rig Price

US$200,000.00
1-4 Pieces
US$150,000.00
5+ Pieces

Basic Info.

Model NO.
XR550D
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
240m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.6mm
Certification
CE
Condition
New
Color
Red
Drilling Diameter
4600mm
Drilling Depth
100/126/150m
Working Weight
320t
Pump Displacement
170m3/H)
Transport Package
Nude Package
Specification
11300*2500*3990
Trademark
Evangel
Origin
China
Production Capacity
100 Sets/Month

Product Description

Drilling Machine XR550D Rotary Drilling Rig 132m Depth Piling Rig Price 1, It adopts the H-style dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2, The main hydraulic system adopts the negative flow control, which can increase the system efficiency and make the most of the engine power. It adopt three-in-one cooling system which is tightly packed and has a high-efficiency in cooling.
3, It adopts the imported turbo-supercharged engine with three gears. It complies with Euro III emission standard, in addition, it has strong power, which is sufficient to satisfy the construction on the plateeue. It noise is up to the nation standard.
Description
Unit
Parameter value
Max. drilling diameter
mm
3500
Max. drilling depth
m
132
Allowable luffing scope (from center of drill rod to slewing center)
mm
4950~5250
Drilling rig dimension in working condition (L × W × H)
mm
12790×6000×33324
Drilling rig dimension in transport condition (L × W × H)
mm
12790×6000×33324
Weight of overall unit (standard configuration, excluding drilling tool)
t
180
Engine
Model

QSX15-C600
Rated power/speed
kW
447/(2100r/min)
Max. working pressure of hydraulic system
Mpa
35
Rotary drive
Max. torque
kN •m
528
Rotational speed
r/min
6~20
Crowd cylinder
Max. Pushing force
kN
300
Max. Pulling force
kN
400
Max.stroke
mm
6000
Crowd winch
Max. Pushing force
kN
400
Max. Pulling force
kN
520
Max.stroke
mm
16000
