Basic Info.
Column number
Four Column
Automatic Grade
Semiautomatic
Maximum Forming Height
500mm
Function
Pre-Heating, Vacuum Forming
Application Material
All Kind of Solid Surface, Acrylic, MDF, Plywood
Transport Package
Plywood
Specification
2550*1670*1150mm
Production Capacity
50units Per Month
Packaging & Delivery
Package Size
272.00cm * 170.00cm * 170.00cm
Package Gross Weight
1000.000kg
Product Description
https://v.made-in-china.com/ucv/sbr/76d0b20be913bdfdb090349fc42803/874baa971910231374027024058476_h264_def.mp4

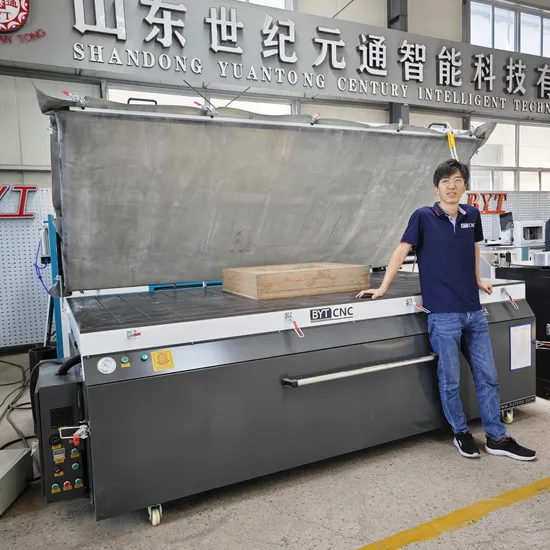

BSF-A Series vacuum membrane press is designed for pre-heating and thermoforming solid surface materials (CORIAN, HI- MACS, STARON, Hanex, Avonite, Krion, etc ) and other thermoplastic such as acrylic, PVC. It can form flat sheets into different kinds of 2D and 3D shapes, in order to achieve much fantastic design
The BSF-A vacuum membrane press combines two independent parts: a pre-heating oven and a membrane press. So it could achieve all of the heating, forming and sublimation demand function for solid surface materials
Model | BSF2513A |
Working aera (mm) | 2440*1220 |
Forming aera (mm) | 2440*1020 |
Heating aera (mm) | 2000*1000 |
Maximum material thickness(mm) | 20 |
Function | Preheating oven+ Vacuum press |
Heating way | Touched |
Total power | 27KW |
Max. forming height(mm) | Manual |
Silicone membrane moving | Max:-0.85MPa, 60M3/H |
Silicone membrane(mm) | 2590*1370*3, 700% , -40-200 |
Voltage | 380V/50HZ/3P |
Machine size(mm) | 2550*1670*1150 |
Weight Net | 750kg |
Applications materials
1. Acrylic solid surface ( Corian, Hi-Macs, Staron, Hanex, Avonite, Krion, etc ) 2. Thermoplastic ( Acrylic, ABS, PVC, PET-G, etc ) 3. Resysta material, Polyester felt, etc
Our service
1.Whole machine guarantee 1 years
2. Lifetime maintenance free of charge.
3. English speaker engineer 24 hours online service each day, free full technical support.
4. Machine has been adjusted before delivery, manual and related video will be with the machine.
5. Our engineers are professional in different types of thermoforming solutions, free thermoforming training is offered when you need.
Finished products
