Basic Info.
Splice Method
Fusion Splice
Adapter Type and Count
2 Sc/Sx or 4 LC/Dx
Specification
86mm(W)x27mm(H)x86mm(D)
Production Capacity
10000PCS Per Month
Packaging & Delivery
Package Size
35.00cm * 35.00cm * 35.00cm
Package Gross Weight
5.000kg
Product Description

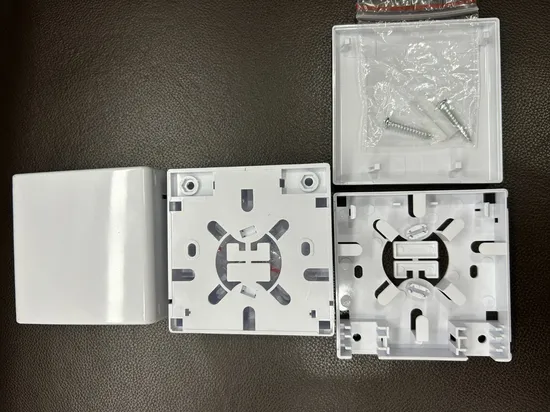

ATB 2 Core Fiber Access Terminal Box
Description The ATB86 terminal box are used in the end termination of residential buildings
and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may
adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly
installed within an office,house or communication room environment.
Applications
1.Fiber to the home(FTTH)
2.Fiber to the building(TFFB)
3.Local area networks
4.Wide area networks
Features & Benefits
1.Support termination, splicing and storage for fiber optic cable systems.
2.Compact structure and perfect fiber management.
3.Engineered fiber routing protect bend radius through the unit to ensure signal integrity.
4.Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
5.Working Temperature: -25ºC~+60ºC; Atmospheric
6.Pressure:70kPa~106kPa;
7.Relative Humidity: ≤ 85%(+30ºC);
8.Protection Degree: IP65;
9.Connector Repeatability: >1000;
10. Connector Specification: IL: ≤0.2dB; RL: ≥50dB;
Technical Parameter
Adapter Capacity | 02 Adapters |
Splice Trays | / |
Splice Capacity | 02 Splices |
Ports | 1 Input Port / 4 Output Ports |
Material | PC/ABS |
Height | 86 mm |
Width | 86 mm |
Depth | 27mm |
Color | White |
Port Capacity | 2 ports, each port for 1 cable with max 10mm |
Parameters:
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
ATB | 2 | B | SC: SC/UPC | SC: SC/UPC |
AS: SC/APC | AS: SC/APC |
LC: LC/UPC | LC: LC/UPC |
AL: LC/APC | AL: LC/APC |
Fiber optical Characteristic (after cable)
Fiber type | Attenuation | Bandwidth | Effective modal bandwidth | 10 Gb/s Link Length |
Conditions | 1310/1550nm | 850/1300nm | 850/ | 850nm | 850nm |
Typical | Maximum | Typical | Maximum | 1300nm |
Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
G652D | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
G657A1 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
G657A2 | 0.4/0.3 | 0.5/0.4 | / | / | / | / | / |
G657B3 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
62.5/125 | / | / | 3.5/1.0 | 3.5/1.5 | ≥160/500 | / | / |
50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥200/500 | / | / |
OM1 |
50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥500/500 | / | / |
OM2 |
OM3-150 | / | / | 3.0/1.0 | 3.5/1.5 | ≥700/500 | ≥950 | 150 |
OM3-300 | / | / | 2.5/0.8 | 3.0/1.0 | ≥1500/500 | ≥2000 | 300 |
OM4-550 | / | / | 2.5/0.8 | 3.0/1.0 | ≥3500/500 | ≥4700 | 550 |
Package
FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.
2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
>>
