Basic Info.
Model NO.
Press arm type/Suction cup type
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Name
Automatic Steel Panel Bender
Usage
Metal Sheet Rolling Bending
Voltage
220V/380V/415V/440V/Customized
Axis
Standard 9 Axis, Support 15 Axis
Linear Guide
Taiwan Hiwin
Transport Package
The Whole Machine Is Packed with Plastic Film, The
Specification
4800*2100*3000mm
Production Capacity
20 Set/Sets
Packaging & Delivery
Package Size
480.00cm * 210.00cm * 300.00cm
Package Gross Weight
12000.000kg
Product Description
Product Description

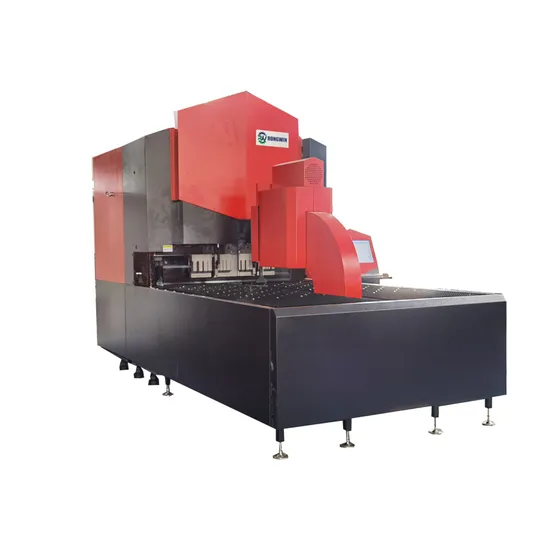

RONGWIN High-Performance Fully Automatic Aluminum and Steel Panel Bender
Rongwin panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.Products application
Here listed some typical applications:
Servo fiexible bending center body,it adopts high-strength steel plate for overall welding,with stable structure and long serving life. Heat treatment removes internal strees,has strong rigidit and heavy tonnage, ensures the long-term stability of machine tool ac-curacy,and improves the bending accuracy ,reliability and durability of machine tool.
Core Components
Machine structure:
The frame is welded by carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal spatter.
The frame adopts a high- precision temperature- controlled furnace, which is tempered, heat-treated, annealed and modulated according to the temperature curve corresponding to the material, which ensures the lasting stability of the overall accuracy of the machine tool. CNC system-Control system:
Touch click graphical programming, easy to operate.
Real-time display of programming bending results, what you see is what you get.
Support a variety of processes, complex angles/hemming/arcs/ special actions and other complex actions are formed in one step.
Support the handwheel simulation function to ensure that there will be no interference and collision during the debugging process.
Support 3D graphics import function in STEP format, start processing directly after importing.
Using DELEM-LINUX operating system, can realize instantaneous shutdown.Product features
High strength frame:
The frame adopts an open "C" structure, which is good for opening. The frame is made of steel structural parts, and after welding, the internal stress is removed by tempering the large tempering furnace. By finite element analysis, the frame has high strength and low deformationPress tooling:
realizes reliable compaction by servo-driven screw driving connecting rod, and can realize reliable clamping of plates of different materials and thickness.Positioning pushing device:
will place the plate to be folded in the X and Y directions, which can realize the pre-positioning between the plate and the machine tool. There are two groups of positioning blocks, which can locate the corner and the edge respectively. The combination has nine positioning functions, and the Y direction of the left and right positioning seat can be adjusted (+50mm) to adapt to the positioning function of various sheets.Rotating device:
Rotating device realizes the rotation of the rotating block by servo driving motor and reducer The high precision encoder realizes closed-loop control, and the rotation accuracy is stable and reliable.The servo drive motor:
The servo drive motor drives the precision ball screw to achieve stable and reliable feeding accuracy. The C frame is analyzed and optimized by finite element analysis, and the moderate lightweight achieves the balance between rigidity and high efficiency.Controller:
1.2D draw directly
2.Real time simulation display of bending process
3.Short responding time, the system will automatically active different processing data for different bending line
4.Support complicate bending angles, HEM and ARC, up and down bending without re-load.
5.Real time compensation
6.Hand Wheel mode as standard
7.3D drawing (.step) input.Smart Control system:
Rongwin's brand-new self- developed full-servo CNC system has seamless and coherent movements, leading the world in work efficiency, and independently designed hardware circuit boards with lead-free soldering and surface immersion gold processing technology, which is stable and durable. Abundant interfaces are reserved to support CNC, PLC, robot, etc. Provide partners with free lifetime system upgrade services.Automatic Load / Unload Solution:
Certifications
Items | RWA02-1000X | RWA02-1400X | RWA05-1400PC1 | RWA05-2000PC1 | RWA05-2500PC1 |
Max. bending speed | 0.2 second/time | 0.2 second/time | 0.2 second/time | 0.2 second/time | 0.2 second/time |
Max. bending width | 1000mm | 1400mm | 1400mm | 2000mm | 2500mm |
Bending hight | 170mm | 170mm | 170mm | 170mm | 170mm |
Rated voltage | 380v | 380v | 380v | 380v | 380v |
Motor total power | 25Kw | 34Kw | 38Kw | 77Kw | 79Kw |
Average power | about 1.1Kw | about 1.5Kw | about 1.9Kw | about 2.6Kw | about 2.9Kw |
Noise | about 50dB | about 50dB | about 50dB | about 50dB | about 50dB |
Machine size | 285*150*280cm | 365*190*290cm | 440*190*290 cm | 510*265*330 cm | 565*300*340 cm |
Total machine weight | about 7t | about 10t | about 15t | about 18t | about 23t |
Max. bending thickness (thicker panel customizable) | UST 515N/mm2 304 stainless steel 1.0mm | UST 515N/mm2 304 stainless steel 1.0mm | UST 515N/mm2 304 stainless steel 1.5mm | UST 515N/mm2 304 stainless steel 1.5mm | UST 515N/mm2 304 stainless steel 1.5mm |
UST 410N/mm2 cold panel 1.2mm | UST 410N/mm2 cold panel 1.2mm | UST 410N/mm2 cold panel 2.0mm | UST 410N/mm2 cold panel 2.0mm | UST 410N/mm2 cold panel 2.0mm |
UST 265N/mm2 aluminum panel 1.6mm | UST 265N/mm2 aluminum panel 1.6mm | UST 265 N/mm2 aluminum panel 3.0mm | UST 265 N/mm2 aluminum panel 3.0mm | UST 265 N/mm2 aluminum panel 3.0mm |
Minimum panel thickness | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm |
Four sides forming, minimum inner | 140*210mm | 140*210mm | 140*190mm | 140*190mm | 140*190mm |
Double sides forming minimum inner | 140mm | 140mm | 140mm | 140mm | 140mm |
Max. bending size | 1000*1000mm | 1400*1400mm | 1400*1400mm | 2000*1500mm | 2500*1500mm |
Axis quantity | Standard synchronized 9 axis | Standard synchronized 9 axis | standard synchronized 15 axis | standard synchronized 15 axis | standard synchronized 15 axis |
Power horn blank holder | optional | optional | optional | optional | optional |
