Welcome to visit

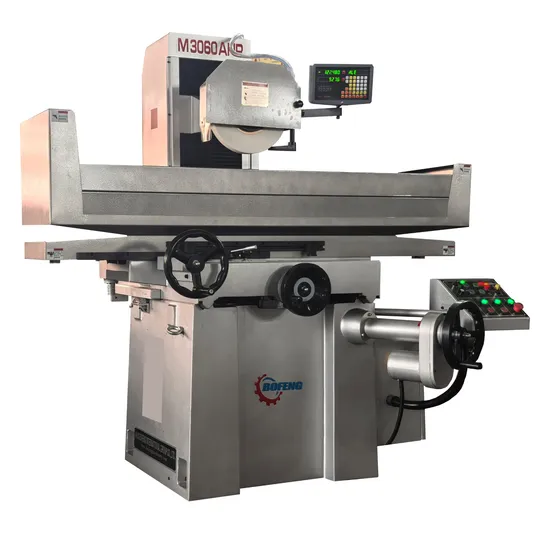

Flat Surface Grinding Machine Manufacturer

US$9,500.00 1 Piece (MOQ)

Basic Info.

Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Manual/PLC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Working Table
600*300mm
Max.Longitudinal Travel
660mm
Max.Cross Travel
300mm
Grinding Wheel Dimension
350X40X127
Spindle Speed
1450rpm
Spindle Motor Power
5.5kw
Transport Package
Exporting Wooden Box
Trademark
Lecroy
Origin
China
Production Capacity
300PCS/Month

Product Description

Main Features:
AH: Cross and longitudinal automatic
AHR: Cross and longitudinal automatic;Vertical fasting moving
CNC control is optional.
Specification:
Model M250AH/AHR M3060AH/AHR M4080AH/AHR M40100AH/AHR
Working table size (mm) 500x250 600x300 800x400 1000x400
Max.longitudinal travel (mm) 540 660 850 1050
Max.cross travel (mm) 280 340 430 430
Max.distance from spindle to working table (mm) 540 540 540 540
Max.loading on working table (kg) 420 420 550 550
T-slot (No. x mm) 1x14 1x14 3x14 3x14
Working table speed (m/min) 5-23 5-23 5-25 5-25
Hand wheel manul feed (cross) (mm/graduation) 0.02 0.02 0.02 0.02
Hand wheel manul feed (cross) (mm/revolution) 5 5 5 5
Hand wheel auto feed (cross) (mm) 0.1-8 0.1-8 0.1-10 0.1-10
Fast moving speed (cross) (mm/min) 790/50Hz 790/50Hz 790/50Hz 790/50Hz
Grinding wheel dimension (mm) 250x20x31.75 350x40x127 350x40x127 350x40x127
Spindle speed (r/min) 2800/3600 1450 1450 1450
Max.up and down movement (mm) 432 432 500 500
Vertical hand wheel movement (mm/graduation) 0.01 0.02 0.02 0.02
Vertical hand wheel movement (mm/revolution) 2 2 2 2
Fast moving speed (vertical) (mm/min) 630 630 630
Spindle motor power (Kw) 1.5 5.5 5.5 5.5
Lifting motor power (w) 80 80 90 90
Cross motor power (w) 80 80 120 120
Hydraulic motor (Kw) 1.5 1.5 2.2 2.2
