US$10,000.00-75,580.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Object
Forage, Straw
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Warranty
1 Year(Expect Spare Parts )
Application
Rabbit, Chicken, Sheep, etc
Package
Standard International Package
Color
Clients′ Requirement
Raw Material
Corn, Sorghum, Soybean, etc.
Transport Package
Wooden Box
Production Capacity
70-100kg/H
Product Description

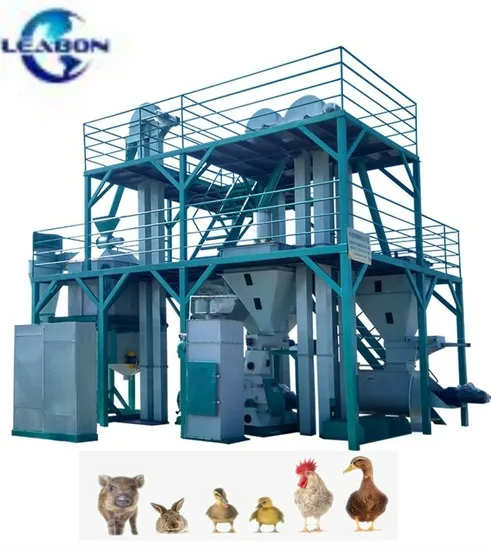

2000kg/h Alfafa Pellet making line animal feed pellet plant line chicken duck poultry feed pellet making line
Product Description
Leabon has many years of experience in the production of feed machines and now has three line feed machines: small capacity feed pellet machine (flat die poultry feed pellet machine, 200-1100kg/h),medium capacity feed pellet machine(CM series ring die pellet machine) and large capacity feed pellet machine (SZLH series ring die feed pellet machine, 1-30t/ h). Large capacity feed pellet machine is mainly composed of: feed hammer mill, feed mixer, ring die feed pellet machine, cooler and screener, feed pellet packaging machine.
Features
1)Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy
2)Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.
3)Stainless steel conditioner extends the conditioning and cooking time.Axial steam spraying port, improving feed cooking efficiency.
4) High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving
Detailed photos
Main Production process
Main Production process :Crushing---Mixing---Pelleting---Cooling--Packing
Crushing:
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
1)Suitble for grains
2)Suitble for grains and grass
Mixing:
The task of this section is:
A. evenly mix different materials into complete powder feed. B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.
Pellet making:
The task of this section is to pellet the powder feed to required sizes.
1)Middle Capacity&Farm Use CM series
Parameter/Model | CM-25A | CM-25B | CM-30B |
Output (kg/h) | 1000-1200 | 1000-1500 | 1500-2000 |
Power (kw) | 22 | 22 | 30 |
Feeding motor(kw) | / | 0.75 | 0.75 |
Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
Inside diameter of ring die (mm) | 250 | 250 | 304 |
Pellet diameter (mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
Dimension (m) | 1.1*1.15*1.25 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
2)Big Capacity&Farm Use SZLH series
Model | Main power (kw) | Out-put (t/h) | Power of Conditioner (kw) | Power of screw feeder (kw) | In-side of rind die (mm) |
SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
Cooling :
Packing
It is suitable for the quantitative packaging of granules in food, grain, fodder, sugar making and chemical industry,etc
Raw Material
Final Products
Application
Project Cases
Our sevice
Company Profile
Certification
FAQ
Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc. |
Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from. |
Q3:What's the certification of your feed pellet machine? ------CE Certification. |
Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts). |
Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram. |
