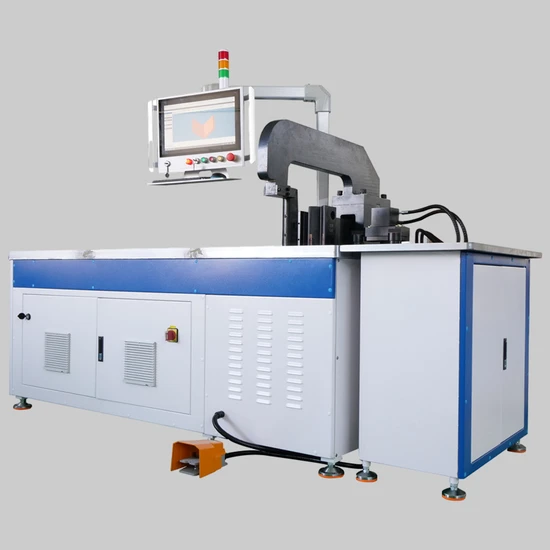

Intelligent 3D Busbar Bending Machine with Windows Screen

US$1.00-10,000.00 1 Set (MOQ)

Basic Info.

Model NO.
EMAC-BB-H12
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum
Type
Cnc Bending Machine
S;Outside Dimension
4150 X1590 mm
Norminal Force
400 Kn
Level Bending
200 *15
Vertical Bending
125 * 15
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Total Weight: 2700kg
Trademark
BEIENE
Origin
Shandong, China
Production Capacity
200 Sets Per Month

Packaging & Delivery

Package Size
224.00cm * 160.00cm * 150.00cm
Package Gross Weight
260.000kg

Product Description

Video link:
https://cncmachinegroup.en.made-in-china.com

Products Description:
Advantages:
1. Whole-Shipment Design,No need any on-site installing and awarded National Appearance Design Patents
2. Smartbend 3D Busbar Bending Program Software
3. Simulate Busbar Bending Give Correct Bending Sequence Automatically
4. Hybrid: Patented Servo Motor Drived Hydraulic Station Eco and Green Tech Built In
5. Standard Free Flat (Level Bending) Punch and Vee Die (Radius can be customized)
6. Automatic Edgewise(Vertical) Bending Tools ( Radius can be customized )
7. With optional Tools ( Roll twisting toll, Dent-free bending die, Electronic Spring-back die, Z type bending tool, U type bending tool, etc)
Dent-free bending Die

Electronic Spring-back die
Specification
Item Unit Parameter
Nominal Force KN 400
Bender Accuracy Degree ±0.2
Max Bending Stroke mm 250
Stroke of X mm 1200
Max Motion Speed of Side Striker(X Axis) m/min 80
Bending Head (Y Axis) m/min 0-5 (Hybrid Control)
Min Inner Width of U-shape Bend mm 40 (Note:Please consult us for smaller dimensions)
Max Bending Angle degree 90
Bending Capacity (W*H) mm 200 × 15
Total Power kw 8
Main Machine Dimension: L*W MM 2600X 1500
TOTAL Weight kg 2600
Configuration
Control Section
Serial No. Name Brand Name
1 Programmable Control SIEMENS
2 Sensor SIEMENS
3 Control Button SIEMENS
4 All-in-one Industrial Computer BEIENE
5
6 AC Contactors SIEMENS
7 Circuit Breaker SIEMENS
8 Servo Motors SIEMENS
9 Servo Drivers SIEMENS
10 Control software and Three-dimensionalcomputer-aided design Update BRCAD
Transmission System
Serial No. Name Brand Name
1 Precision Straight rail Taiwan HIWIN
2 Precision Ball Screw Taiwan HIWIN
3 Bearing Japan NSK
Package and Shipment
