Product Details
Product Description
Product Description
1. Introduction

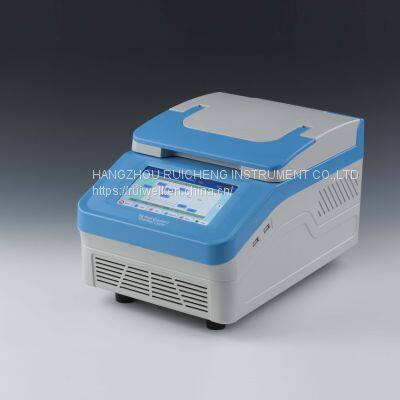

Gradient Thermal Cycler is a gene amplification instrument with gradient PCR function derived from ordinary PCR instrument. It is produced by basing on highly reliable semiconductor peltier and embedded operating system. Gradient thermal cycler is idal for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.
Features:
u Excellent amplication due to high quality semiconductor peltier.
u 7-inch color touch screen—for easy programming of users.
u The fastest heating and cooling rate of 5°C/s save valuable experimental time.
u Self adjusting heated lid: excellent anti-evaporation effect, it can adapt to different height test tubes.
u Built-in standard procedure document template can quickly edit the required documents.
u Built-in independent fast incubation function can meet the needs of experiments such as denaturation, enzyme digestion/enzyme, ELISA and other experiments.
u An on-screen report is available at the completion of a run.
u Automatic fault detection and alarm function.
2. Parameters
Capacity
| 96x0.2ml (0.2ml PCR tubes, 8-tube strips)
|
Temp. setting range
| 4°C~105°C
|
Heated lid temp. range
| 30°C~115°C (user adjustable)
|
Temp. uniformity
| ≤±0.2°C
|
Temp. accuracy
| ≤±0.2°C
|
Max. heating rate
| 5°C /sec
|
Max. cooling rate
| 4°C /sec
|
Temp. display resolution
| 0.1°C
|
Temp. control method
| Block/Tube
|
Display
| 7-inch color touch screen, 800x480 Pixel
|
Communication interface
| USBx2
|
Tm calculation
| Automated
|
Program memory
| 10000+
|
Time increment/decrement
| -999~999s
|
Temp. increment/decrement
| -10~10°C
|
Gradient temp. range
| 30~105°C
|
Gradient setting range
| 0.1~30°C
|
Gradient temp. uniformity
| ≤±0.2°C
|
Gradient temp. accuracy
| ≤±0.2°C
|
Temp. change rate
| 0.1~4°C/s
|
Single step time range
| 0~9h59min59s/∞
|
Program max. cycle numbers
| 100
|
Max. steps of the program
| 30
|
Program pause function
| Yes
|
16°C insulation
| Forever
|
On-screen report
| Yes
|
Power
| 800W
|
Voltage
| AC100~240V/50-60Hz
|
Fuse
| 250V 10A Ф5×20
|
Dimension(mm)
| 420x260x245
|
Weight(kg)
| 11
|
>>
