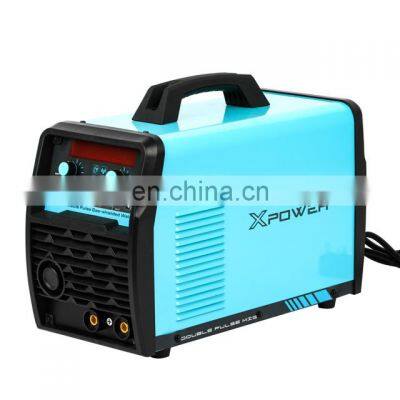

Dual pulse 220V mag mma mig welding machine for aluminum weld

Product Description

Product Description
Product Description
Features
1. The integration of digital control with MCU technology to achieve intelligent synergy.2. Advanced IGBT technology, compact design, lightweight and energy saving.
3. Digital display, precisely controlled welding current, stable welding process and excellent welding characteristics.
4. Automatic over-current, over-heat and over-voltage protection.
5. Integrated design with a wire feeder built-in. Facilitate mobility operations.
6. Intelligent setting to make the usage of MIG welding much easier.
7. Welding current and voltage can be set automatically when welding wire is chosen, while manual setting is also applicable.
8. Can be used with gas or without gas.
9. Multi-function design to meet various welding demands. It is suitable for single pulse MIG welding, double pulse MIG welding, MIG/MAG welding, MMA welding, etc.
10. Wide range of working material, such as Al Si, Al Mg, stainless steel, mild steel, etc.
Technical Specifications
ITEM
UNIT
MIG-200WDP
Input Power Voltage
V
AC230V±10%
Input Power Frequency
Hz
50/60
Rated Input Capacity
KVA
9.4
Output Current Range (MIG)
A
60-200
Output Current Range (MMA)
A
20-180
Wire Speed
M/min
1.5-16
No-load Voltage
V
69

Duty Cycle
35%
200
Rated Duty Cycle
60%
153

100%
118
Electrode & Wire Diameter
mm
1.5-4.0     0.6-1.0
Efficiency
%
85
Protection Grade

IP22S
Insulation Class

F
Dimensions
MM
500*215*340
weight
Kg
13.5

Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
