Soybean Extruder Poultry Feed Low Capacity Poultry Feed Industry

US$1,850.00
1-2 Pieces
US$1,810.00
3+ Pieces

Basic Info.

Model NO.
HH-D70
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Extruder
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Transport Package
Container or Wooden Case
Specification
120-150kg/h
Trademark
HH
Origin
China
HS Code
84388000
Production Capacity
200 Units/Month

Product Description

Soybean Expander/Soya Bean Meal Extruder Medium Size Single Screw /Soybean Extruder Poultry Feed
1. Processing method of extruded soybean/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extrusion Machine Small Size Low Energy Soybean Oil Industry High Oil Rate
The main equipment for extruding soybean is the extruder, which can be divided into two types: dry puffer and wet extruder. The main difference between the dry extruder and the wet extruder is that the wet extruder has a modulator, and steam is introduced into the extruder. The initial input of wet extruder is larger than that of dry extruder, but the output per unit time is high and the energy consumption is low. The specific use of dry expansion machine or wet expansion machine, users can determine according to their actual situation.
2. Soybean Extruding Process/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extruder Poultry Feed
Raw material screening impurity removal crushing expansion cooling finished product packaging
In general, the production of extruded soybean flour requires the following main equipment:
1. Soybean crusher can smash soybean into soybean powder by pounding.
2. Soybean extruder: This is the key equipment for the production of extruded soybean flour. The soybean flour first enters the conditioner of the extruder, which is heated and humidified by steam. The soybean flour after steam conditioning enters the extruder from the strong feed. The function of the strong quality feeder is to prevent the materials with high heat and humidity from caking and blocking when they enter the cavity. After entering the expansion cavity, the extruder screw pushes the soybean flour forward. In the process of pushing forward, a large amount of heat is generated to make the soybean warm and mature. Finally, the extruded soybean flour is produced by the extrusion machine cavity head.
3. The water content and temperature of extruded soybean flour with high temperature and high moisture content enters into the cooler and is cooled by natural air drawn by the fan, so as to reduce the moisture and temperature of extruded soybean flour to the qualified level, so as to facilitate the storage of users.
4. Crusher: according to the needs of users, crush the extruded soybean powder to the fineness suitable for users, and finally get qualified extruded soybean powder products.
The above are the main equipment for the production of extruded soybean flour. In actual production, there are some supporting equipment. According to the different production process, the following equipment may be used: screw conveyor, elevator, pulse dust collector, brake dragon, fan, rotary grading screen, etc.
3. Detection method of extruded soybean/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extruder Poultry Feed
The purpose of soybean expansion is to destroy some anti nutritional factors effectively, improve its utilization rate, and make livestock and poultry get better production performance after feeding. However, if the aging is excessive, some amino acids will be destroyed. If it is over heated, the damage to lysine, arginine and cystine will be increased, and the digestibility of methionine, isoleucine and lysine will be decreased, and the food intake will be reduced. If the degree of ripening is not enough, it will seriously affect its utilization rate, so it is necessary to do a test on its ripening degree. Generally, the degree of ripening is determined by the activity of urease in soybean flour. At present, there are many detection methods, the more commonly used are pH value-added method and phenol red method. According to the Chinese feed standard, the value of urease activity measured by pH method should not exceed 0.4. Many studies have shown that the urease activity is only in the range of 0.03-0.04, and the feed effect is the best. However, it is better to use urea phenol red method to detect urease activity in the field of feed manufacturers. Therefore, the method is simple and fast, and the technical level is not high. It is easy to master, and can also achieve the purpose of detection in production, which is suitable for popularization and use.
4. Problems in the process of Soybean Extrusion/Soybean Expanding Machine/Soybean Expander/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extruder Poultry Feed
The quality of full fat soybean depends on good operation management and operation skills. Only by controlling the three parameters of time, temperature and humidity can the product quality be stable.
1. The quality of soybean: moisture content is 12.5% - 14%, impurity is not more than 2.5.
2. The best particle size of material entering the chamber is 3-6 mm, so as to achieve constant quality and improve production capacity.
3. In order to ensure the constant product quality, the residence time of raw materials in the chamber and the temperature in the chamber should be recorded in the production process. Generally speaking, the time of raw materials in the chamber is less than 30s, the duration of the highest temperature is 5-6s, the temperature of the best section should be 130-145 ÂșC, and the moisture content of the product should be below 8%. In addition, proper amount of water can be added during processing, which helps to reduce trypsin inhibitor without denaturation of lysine.
4. Cooling: the temperature of full fat soybean after extrusion is very high. It should be cooled down as soon as possible to prevent the product from over ripening and damaging the protein. It should be especially careful that the moisture content of the product after wet expansion is high, which must be fully dried and cooled to achieve safe storage moisture.
5. Parameters of Dry type Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extruder Poultry Feed
Model Capacity Motor power Feed power Cut power Screw diameter
HH-D60 120-150kg/h 15KW 0.4KW 0.4KW 60mm
HH-D70 180-250kg/h 18.5KW 0.4KW 0.75KW 70mm
HH-D80 300-350kg/h 22KW 0.6KW 1.5KW 80mm
HH-D90 400-450kg/h 30KW 0.8KW 2.2KW 90mm
HH-D120 500-700kg/h 55KW 1.1KW 2.2KW 120mm
HH-D135 800-1000kg/h 75KW 1.1KW 2.2KW 135mm
HH-D160 1200-1500kg/h 90KW 1.5KW 2.2KW 155mm
HH-D200 1800-2000kg/h 132KW 1.5KW 3KW 195mm

Parameters of Wet type Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Soybean Expander/Soybean Extruder Poultry Feed
Model Capacity Motor power Feed power Cut power Screw diameter
HH-W60 200-250kg/h 15KW 0.4KW 0.75KW 60mm
HH-W70 300-400kg/h 18.5KW 0.4KW 0.75KW 70mm
HH-W80 500-600kg/h 22KW 1.1KW 0.75KW 80mm
HH-W90 700-800kg/h 37KW 1.1KW 1.1KW 90mm
HH-W120 1000-1200kg/h 55KW 1.1KW 1.1KW 120mm
HH-W135 1400-1600kg/h 75KW 1.5KW 2.2KW 135mm
HH-W160 2000-3000kg/h 90KW 2.2KW 2.2KW 155mm
HH-W200 3000-5000kg/h 132KW 2.2KW 3KW 195mm

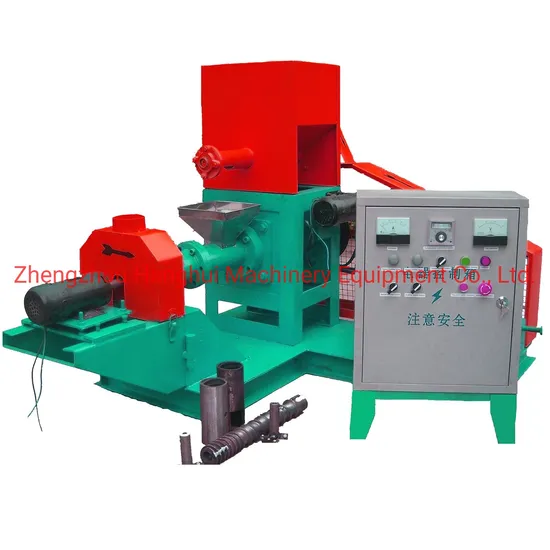

6. Pictures of Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extruder Poultry Feed
7. Delivery of the Soybean Extruder Poultry Feed/Soybean Extruder/Soybean Extruding Machine/Soybean Expanding Machine/Soybean Extruder for animal feed/Soya Bean Meal Extruder Medium Size Single Screw/Soybean Extrusion Machine Small Size Low Energy Soybean Oil Industry High Oil Rate
Within 7-10 working days after deposit payment.
