Basic Info.
Application
Mineral Industry, Stone Industry
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
250-300MPA
Finished Surface
Outer Surface Process
Motor Brand
China Top Brand
Transport Package
Water Proof by Sea
Specification
PFL800, PFL1000, PFL1250, PFL1500, PFL1750
Production Capacity
100 Sets Per Year
Product Description

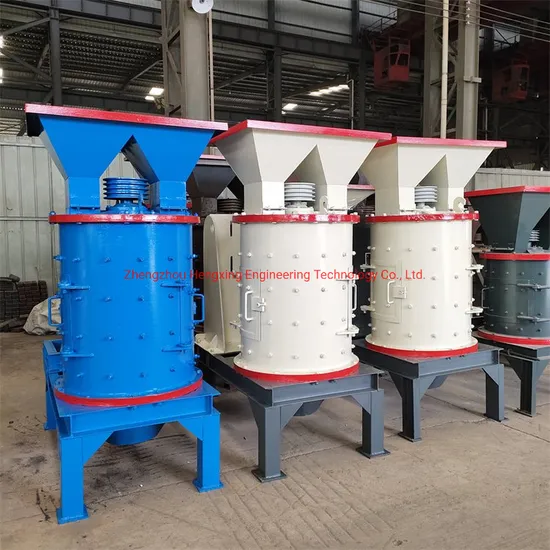

High Efficient vertical compound crusher manufacturer For Gypsum Stone,Limestone PFL vertical compound crusher, combining with the optimized fine crushing techniques at home and abroad, is used to crush various medium-hardness ores. It is mainly applied to crush the materials whose compression strength is less than 140MPa and humidity is less than 15%, such as limestone, clinker, coal, and other ores in building material industry, mining, metallurgy, and chemical engineering.
Vertical compound crusher Working principle:
The material in the upper part of the machine is perpendicular drop into the high speed rotating impeller, and under the high speed centrifugal force, it produces high speed impact and comminution with the other part of the material which distributes in the shape of umbrella around the impeller vertical composite crusher. The impeller and the housing will be crushed by swirl impact and friction between the impeller and the housing for many times, which will be discharged directly from the bottom, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required product size.
Vertical compound crusher Features:
1. High crushing rate; less noise, pollution, and abrasion; convenience in maintenance.
2. Having the fine crushing and coarse grinding functions.
3. Applied to crush medium-hardness and very hard materials.
4. Having obvious superiority in crushing the materials with high humidity.
Vertical compound crusher technical specifications :
Model | Rotor diameter (mm) | Cylinder height (mm) | Main shaft rotation speed (r/min) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Dimension (LxWxH mm) | Weight (t) |
800 | 650 | 800 | 1350 | 50 | 0-5 | 5-15 | 30 | 2200*860*1980 | 2.3 |
1000 | 800 | 850 | 970 | 70 | 0-5 | 10-30 | 55 | 2700*1160*2000 | 4.5 |
1250 | 1000 | 850 | 740 | 100 | 0-5 | 20-60 | 75 | 2800*1400*2730 | 9.7 |
1500 | 1250 | 1000 | 650 | 100 | 0-5 | 30-80 | 110 | 3350*2100*2800 | 18.1 |
1750 | 1560 | 1410 | 600 | 100 | 0-5 | 40-100 | 132 | 3100*1900*2300 | 26.6 |
For Any Inquiry , Please contact us directly with Following information : 1. What kind of stone be crushed ? Limestone ? Granite ? Basalt ? or which kind ? 2. The general sizes of stones before crsuhing 3. The Sizes of Required final products ? For Mining ? For Construction ? 4. Capacity ? ___ T/H or ____ CBM/H
>>
