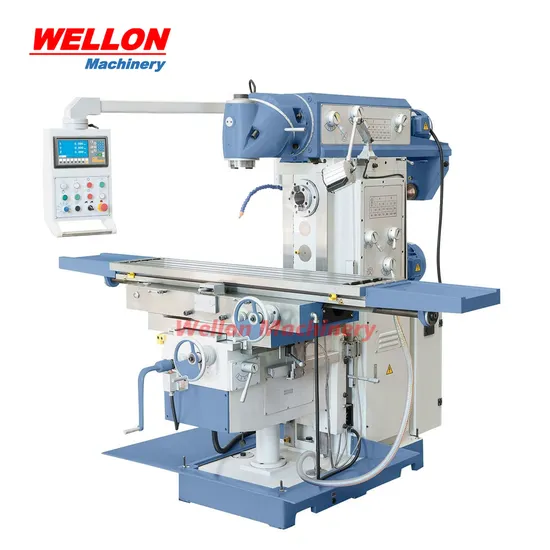

Universal Type Milling Machine XL6436cl Vertical and Horizontal Milling Machine

Product Description

Products Description:
Performence Features:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials Technical parameter:

Specifications	Unit	XL6436CL
Table size	mm	1600×360
Table travel (X/Y/Z)	mm	1300/320/450
Table feed speed X axis	mm/min	30~750
Table feed speed Y axis	mm/min	20~500
Table feed speed Z axis	mm/min	15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-646
Distance between horizontal nose and table surface	mm	20-470
Distance between spindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
AC servo feed motor torque	N.m	10
Overall size	mm	2245×2100×2000
Net weight	kg	2800

Standard Accessories:
Draw bar
Coolant device
Coolant tray
Universal mill head
Automatic central lubrication
Mill arbors
Tools
Optional Accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light
