US$8,000.00-10,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station Tool Post
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Max. Swing Over Bed
610mm
Max. Swing Over Carriage
370mm
Max. Swing in Gap(Saddle)
830mm
Effective Gap Length
210mm
Max. Length of Work Piece
750/1000/1500/2000/3000/4000mm
Section of Turning Tool
25 X 25
Spindle Speed
16-1400rpm(24 Steps)
Hole Through Spindle
105mm
Spindle Taper
No.6(Mt6) { Φ113 1:20}
Max. Tailstock Spindle Travel
150mm
Tailstock Spindle Diameter
Φ75mm
Taper of Tailstock Spindle Center Hole
No.5 (Mt5)
Transport Package
Plywood Case with Steel Base
Production Capacity
1000/Year
Packaging & Delivery
Package Size
280.00cm * 140.00cm * 190.00cm
Package Gross Weight
3000.000kg
Product Description
Product features
1-This lathe is suitable for internal and external turning,tapering ,and other rotating faces ,metric,module and inch threads, as well as drilling and pull oil slot .
2-The lathe bed is 400mm,owns high rigidity,guide face after high frequency quenching,with high durability .
3-Easy operated ,one handle to operate quite convenient .
4-Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .
Product Parameters
| Item | CA6161/CA6261 |
| Max. Swing over bed | 610mm |
| Max. swing over carriage | 370mm |
| Max. swing in gap(saddle) | 830mm |
| Effective gap length | 210mm |
| Max. Length of work piece | 750/1000/1500/2000/3000/4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25 x 25 |
| Spindle speed | 16-1400rpm(24 steps) |
| Hole through spindle | 105mm |
| Spindle taper | NO.6(MT6) { Φ113 1:20} |
| Number of feeds | 64 kinds |
| Range of metric threads(kinds) | (1-192mm) 44kinds |
| Range of inch threads(kinds) | (2-24tpi) 21kinds |
| Range of module threads(kinds) | 0.25-48( Module 39 kinds) |
| Range of pitch threads(kinds) | 1-96DP(37 kinds) |
| Max. Tailstock spindle travel | 150mm |
| Tailstock spindle diameter | Φ75mm |
| Taper of Tailstock spindle center hole | NO.5 (MT5) |
| Main motor | 7.5KW |
| Packing Dimension | 2600X1200X1800mm |
| Net /Gross weight | 2200/2300KG |

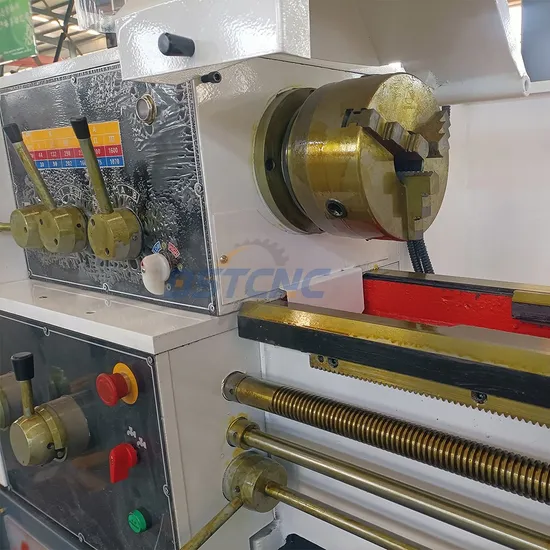

Detailed Photos
Company Profile
Cooperation Customers
Packaging & Shipping
FAQ
>>
