Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Maximum Feed Resistance N of Main Shaft
3000
Maximum Spindle Torque N.M
800
Conicity of Main Cone Hole No
5
Spindle Speed r.p.m
40-570(9steps)
Machine Tool Weight Kg
2500
Outline Dimension mm
1300*840*2580
Transport Package
Plywood Box
Product Description
Product Description

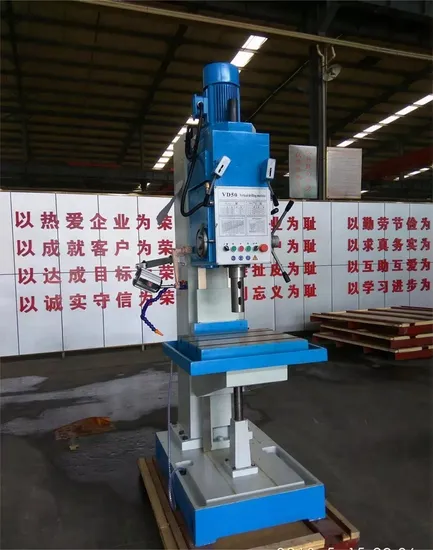

SP5163B Drill Press Drilling Machine 63mm Bench Vertical Drill Press Machine With Factory Price SUMORE
1. Z5163B vertical drilling machine, which can be used for drilling, reaming, countersinking, countersunk drilling, boring and tapping. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
2.The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters
Main technical parameters
| SP5163B
|
Maximum borehole diameter mm
| 63
|
Maximum Feed Resistance N of Main Shaft
| 3000
|
Maximum spindle torque N.m
| 800
|
Main motor power kw
| 5.5
|
Conicity of main cone hole NO
| 5
|
Spindle speed r.p.m
| 40-570(9steps)
|
Feed per spindle revolution mm/rev
| 0.11-0.78(6steps)
|
Spindle stroke mm
| 250
|
Spindle box stroke mm
| 250
|
Distance from spindle centerline to pillar mm
| 375
|
Longitudinal and transverse travel mm of worktable
|
|
Vertical travel mm of worktable
| 300
|
Maximum distance from end face of spindle to worktable mm
| 850mm
|
Table size mm
| 650*550
|
Machine tool weight kg
| 2500
|
Outline dimension mm
| 1300*840*2580
|
|
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
>>
