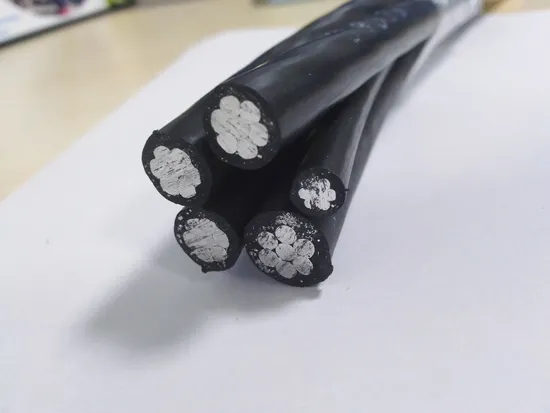

Torsade Cable 3X35+54.6+25mm2 Aluminum Overhead Cable ABC Conductor Preassemble Cable

US$0.10-10.00 1,000 Meters (MOQ)

Basic Info.

Model NO.
JKLY 3x35+54.6+25mm2
Current
DC & AC
Insulation Material
XLPE
Sheath Material
None
Material Shape
Round Wire
Wire Core Material
Aluminum Wire
Certification
ISO, CCC, CE
Model
Jkly
Brand
Yifang Cable
Rated Voltage
0.6/1kv
Conductor
Aluminum
Sheath Color
Black
Cores
3X35+54.6+25mm2
Insulation Thickness
1.6mm
Country Exported
West Africa:Togo,Cote Diva,All Over The World
Standard
NFC 33 209 IEC 60502-2
Transport Package
Wooden Drum
Specification
1.1m drum
Trademark
Yifang Cable
Origin
China
HS Code
8544601200
Production Capacity
300km Per Month

Product Description

Torsadé Câble 3x35+54,6+25mm² Aluminum Overhead Câble ABC Conductor Préassemblé Cable

conductors

The LV cable used for carrying out the work will be of insulated type, pre assembled rated voltage beams 0,6 / 1 kV.
The beam will consist of three phase conductors, a neutral conductor and two public ligHVing conductors (PE). The sections are specified in the following table:2x16mm2

Cables insulated conductors

These technical clauses specify the following cables insulated conductors:
- LV conductor cables for lines of LV networks
- LV cable conductors for LV circuit breakers transformers links,
- Cable connection LV drivers of public ligHVing fixtures,
LV networks will consist of insulated cables assembled in bundles composed as follows:
- 3 core phase conductors of an aluminum section 16 mm²
- carrier neutral conductor core Almelec a section of 54.6 mm²
- public ligHVing conductors aluminum core of a section of 25 mm²

Materials

Insulated cable assembled LV network to beam
The cable will meet the French standard NF C 33-209. The souls of the phase conductors and public ligHVing will consist of hardened aluminum son pure hard 3/4 99.5 M, Type 1370 (A5 / L) to the standard NF C 3 1-122, while core of the neutral conductor is formed of son alloy magnesium aluminum silicon, heat-treated, containing approximately 0.5% magnesium and 0.5% silicon.
Each driver of the beam will be insulated with cross-linked polyethylene extruded jacket black meets the dimensional and mechanical characteristics specified in the NFC 33-209 standards.
TECHNICAL DATA SHEET FOR Cable preassemble 3x35+54.6+25mm2
NO. DESCRIPTION UNIT DATA
1 Standards IEC60502-1,NFC 33 209
Size mm2 3x35+1x54.6+1x25
2 Rated voltage (Uo/U) KV 0.6/1
3 Phase Core Construction
3.1 Conductor
Number & Cross-section Area mm2 3x35
Material -- Compacted Aluminum Wire
Stranding wire number of conductor Nos 7
Approx. Diameter of conductor mm 6.6-7.5
3.2 Insulation
Material -- Black XLPE
Nominal Thickness mm 1.6
Approx. Diameter of phase insulated core mm 10.26
4 Neutral Core Construction(insulated)
4.1 Conductor
Number & Cross-section Area mm2 1x54.6
Material -- Stranded Aluminum Alloy Wire
Stranding wire number of conductor Nos 7
Approx. Diameter of conductor mm 9.45
4.2 Insulation
Material -- Black XLPE
Nominal Thickness mm 1.6
Approx. Diameter of neutral insulated core mm 12.65
5 Street Lighting Core Construction
5.1 Conductor
Number & Cross-section Area mm2 1x25
Material -- Compacted Aluminum Wire
Stranding wire number of conductor Nos 7
Approx. Diameter of conductor mm 5.6-6.5
5.2 Insulation
Material -- Black XLPE
Nominal Thickness mm 1.4
Approx. Diameter of lighting insulated core mm 8.8
6 Approx. Dia. Of complete cable mm 28.4
7 Approx. weight of complete cable per km Kg 720
8 Max. Conductor DC resistance at 20 °C
Phase conductor Ohm/km 0.868
Street lighting conductor Ohm/km 1.2
9 Tensile strengh of neutral conductor KN 16.6

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
