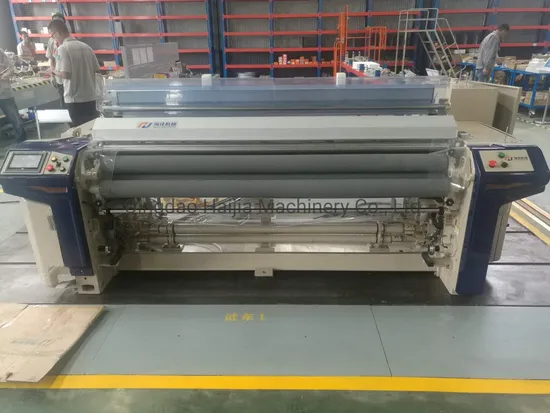

High Efficient Mechanical Take-up U-Type Beating up Water Jet Loom

US$15,800.00
2-19 Sets
US$14,900.00
20-49 Sets
US$14,100.00
50-199 Sets
US$13,500.00
200-499 Sets
US$13,100.00
500+ Sets

Basic Info.

Model NO.
HW8010
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Global Aftersale Team Available
Speed
800/1200/1400
Reed Space
150/170/190/210/230/260/280/300/320/340/360
Weft Density
8-220 Thread/Inch
Weft Insertion Rate
2880 M/Min
Weft Selection
Single/Double/Three/Four
Weaving Scope
8d-1800d
Motor Rating(Kw)
1.8/2.2/2.8/3.2/3.7/4.0/4.2/4.5
Shedding
Crank/Cam/Dobby/Jacquard
Working Life
at Least 15 Years
Warp Density
Customized
Fabric Type
From Gauze to Heavy Fabric
Cutter
Mechanical Cutter
Temple
2 Barrel Type with 5 Row Needles
Capacity
20, 000 Sets/Year
Shipping
by Sea in Container
Transport Package
Carton
Specification
150-360
Trademark
HJ
Origin
Qingdao, China
HS Code
84463040
Production Capacity
13500 Sets for Last Year

Product Description

About Us
We have 27-year's experience in making Water/Air Jet Looms, but for high-level ones only.
The smart factory is built to realize this strategy which is equipped with FMS production line and ERP/MES/WMS/PLM/Digital-Twins system.
We are happy to find our weaving machines rank the top no matter in China, or abroad market. Also, they are sold to Toray and Teijin, the two Japanese giants in textile industry, while enjoy great fame.
Why not give us a call or set up a meeting with us?
Don't miss the opportunity to know how we can fulfill your imagination & expectation on your textile business.
(More...)
Why Choose Us- (F,I,R,S,T)
- Flexible: We are rigid to quality but flexible to customize for you.
- Integrated with all resources: R&D, Manufacturing, Marketing&Sales, International Aftersales...
- Reliable: Quality governed by Traceable System, while we are governed by the Win-Win philosophy.
- Stable: Smooth in weaving process and can be used for at least 15 years.
- Technical Support: >= 27 years experience with >= 90 technical engineers globally.

Product Details
No. Item Description
1 Wall Board HaiJia special heavy enhanced type, using H250 cast iron material, same supplier as TSUDAKOMA; Manufacted by Makino with 0.01mm tolerance.
2 Beating-Up Shaft Hollow type, solid type or U-Type; with strong beating force.
3 Electronic Control System Inovance or Veichi brand.
4 Finishing Electrophoresis and baking paints, long service time in rust resistance.
5 Let-Off / Take-Up Device Mechanical or electronic.
6 Gear Taiwan Datong brand, ultra-quite, wear-resistant, low vibration and high precision.
7 Bearing Sweden SKF bearing(inside of wall board), and Japan brand bearings(outside of wall board).
8 Beam Available for single or double beam.
9 Heald Frame XiangRui brand.
10 Weft Measuring ROJ or Veichi brand.
11 Pump Plug Shutai brand in ceramic material.
12 One-Way Valve/
Pump Spring
Japan AWA brand.
13 Nozzle Korea MDH brand.
14 Sley Using top brand reinforced type, made by SUS304 stainless steel.
15 Weft Feeler Photoelectric type.
16 Selvage Using Taiwan selvage assembly which is smooth, long service life and low noise.
17 Temple With five rows needle to achieve better performace.
18 Suction Pipe Made by SUS304 stainless steel.
19 Stripe Tianqi Brand, top brand in China.
20 Stainless Steel Screws Taiwan DongMing brand.

Our Strength
CNC Workshop - We are equipped with worldclass CNCs- Japan Makino, Japan Mazak, Hyundai WIA, Faunc Robert...
Assembly Workshop - We are using Pulse Assembly Line, which is the first case globally equipped in the textile industry.
Vertical Warehousing - Automatic and intelligent, with less erros while working in high efficiency.
R&D Team
(We have >= 70 engineers in R&D and >= 20 aftersale engineers all around the world.)
Customer Cases
(Currently we are serving 24 countries and regions such as India, Pakistan, China, Vietnam, Turkey, Brazil and so on.)
Trade Shows & With Our Clients
(It's the service that makes us distinctive. We believe that fortune and fame will follow if we are adding value for clients.)
FAQ
1. What payment terms can be accepted?
A: L/C, T/T, D/A, D/P can all be accepted.
2. What certificates do you obtain?
A: We have certificates such as CE, ISO and so on.
3. What about the delivery time?
A: 20-45 days after receiving the deposit.
4. What about the warranty time?
A: 12 months after shipment.
5. What about the MOQ?
A: The MOQ is 2 pcs.
6. Are you a manufacturer or agency?
A: We are a direct manufacturer with our own international sales team.
7. Do you have engineer available in abroad?
A:Yes,we have more than 20 engineers for sales service in domestic and abroad.
8. How can we go to your factory?
A: We are 40 minutes' driving to Qingdao International Air Port and we can pick you up there.
For more questions, please feel free to contact us.
