Basic Info.
Automatic Grade
Automatic
Application
Milk Tea Drinks
Transport Package
Wooden Box
Specification
5000*1500*2700
Production Capacity
20 Sets/Year
Packaging & Delivery
Package Size
5500.00cm * 1500.00cm * 2000.00cm
Package Gross Weight
5000.000kg
Product Description
Product Description
Explosive beads are also called fragrant pills, brittle capsules and beads. "It is made from a combination of sodium alginate, calcium lactate, fruit puree, and drinking water. Explosive beads belong to the spheroidization process in molecular cuisine. Its principle is that water-soluble sodium alginate and calcium ions react in large quantities. Cross-linking bonds are formed between molecules to form a gel layer, which is ultimately called a small liquid glue bead. It can wrap raw materials with different functions. It can wrap common cereals, fruits and juices of various flavors. It is provided. It not only has a rich taste, but also can provide rich explosiveness and crispness due to its colloidal surface characteristics, giving people a pleasant taste experience, so it is widely used in the beverage field.

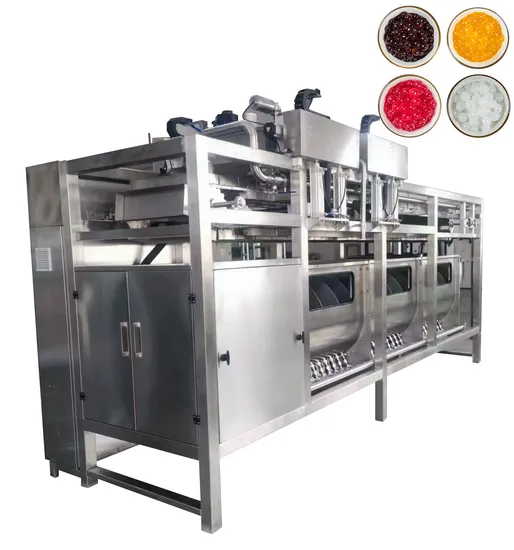

This machine is an equipment for producing cereal popping beads and juice popping beads.It is a 2-in-1 device
Before Jinma launched this equipment, cereal and juice popping beads required different production equipment. Jinma creatively combined the two sets of equipment into one, which greatly saved the manufacturer's investment cost and greatly improved the production efficiency. The output of popping beads is the best choice for milk tea topping production equipment.
Equipment components:
1. Complete machine frame
2. Follow-up juice drip forming head
3. Kinematic chain preformed static tank
4. Downward return guide plate
5. U-shaped reaction tank
6. Boiling pressure air supply device
Detailed Photos
Product Parameters
U-shaped forming tank effective capacity | 900L |
Feeding port height | 1400mm |
Molding time | 5-15 minutes continuously adjustable |
Bead blasting processing capacity | maximum 1500 kg/hour |
Power supply: | 380V, 50Hz |
Power | 12.5kW |
Air source pressure | 0.6~0.8 MPa |
Circulation pump power | 2.2KW, flow: 20t/h, head: 18M |
Dimensions | ength 5000*width 1500*height 2700mm |
Company Profile
ChangeZhou Jinma is an equipment manufacturer: focusing on the development and sales of automated production and packaging equipment for innovative ingredients (Hantian crystal balls, sandwich popping beads, etc.) in the beverage industry.
Jinma provides overall solutions: providing customers with customized overall solutions including workshop layout design, formula, process, equipment installation and commissioning and training.
Jinma is a high-tech enterprise: established in 2014, and was rated as a high-tech enterprise in 2019 and 2022.
Patented Technology Certificate
After Sales Service
Technical Support
1. Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service.
FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
1)Your expected capacity for machine.
So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Packaging and shipping
Wooden box---solid wood or multi-layer wood
>>
