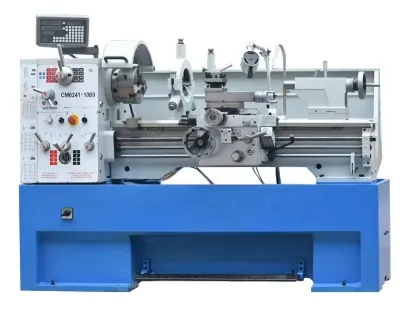

High Quality Gap Bed Engine Lathe Machine with Dro

US$5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CM6241
Type
Horizontal Lathe
Processing Accessory
Center Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Turret Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Pallet
Trademark
Allway
Origin
China
HS Code
84581900
Production Capacity
2000PCS/Year

Product Description


The main performance characteristics: 1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability. 2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine. 3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life. 4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine. 5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance. 6 The machine adopts high strength four station turret shank size: 25x25mm. Application: 1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts. 2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable. 3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization. 4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting. 5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability. Product Parameters
Product main technical parameters:

Specification Models
CM6241×1000/1500 CM6241V×1000/1500
Capacity
Swing over bed 410mm(16")
Swing over cross slide 255mm(10")
Swing in gap diameter 580mm(23")
Length of gap 190mm(7-1/2")
Admits between 1000mm(40")/1500mm(60″)
Center height 205(8″)
Width of bed 250(10")
HEADSTOCK
Spindle nose D1-6
Spindle bore 52mm(2")
Taper of spindle bore No.6Morse
Range of spindle speed 16 changes 45-1800r/min 30-550r/min or 550-3000r/min
FEEDS AND THREADS
Compound rest travel 140mm(5-1/2")
Cross slide travel 210mm(8-1/4")
Lead screw thread 4T.P.I.
Max.Section of tool (W×H) 20×20mm(13/16")
Longitudinal feeds range 0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross feeds range 0.025-0.85mm(0.001"-0.0335"/rev)
Threads metric pitches 39kinds 0.2-14mm
Threads imperial pitches 45kinds 2-72T.P.I
Threads diametral pitches 21kinds 8-44D.P.
Threads module pitches 18kinds 0.3-3.5M.P.
TAILSTOCK
Quill diameter 50mm(2")
Quill travel 120mm(4-3/4")
Quill taper No.4 Morse
Cross adjustment ±13mm(±1/2")
MOTOR
Main motor power 2.2/3.3kW(3/4.5HP)3PH
Coolant pump power 0.1KW(1/8HP),3PH
DIMENSION AND WEIGHT
Overall dimension(L×W×H) 194×85×132cm/244×85×132cm
Packing size(L×W×H) 206×90×164cm/256×90×164cm
Net weight/Gross weight 1160kg/1350kg 1340 kg /1565 kg
