High Capacity Fully Automated Bursting Boba and Popping Boba Equipment

Product Description

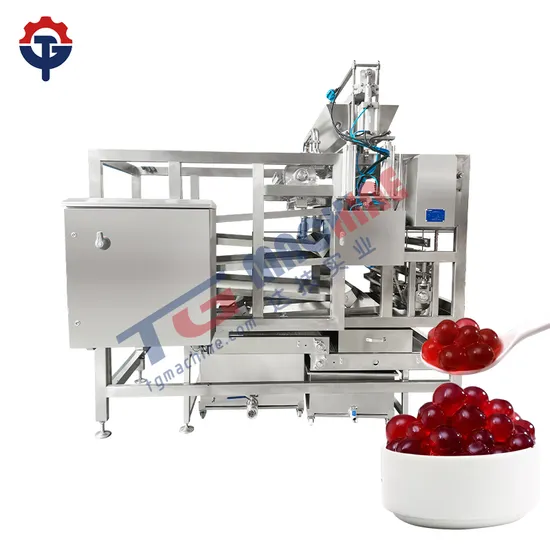

Product Description Popping boba production line is developed by Shanghai Target Inductry Co.,Ltd. and we are the only factory that can manufacture this kind of machine in China till now. It adopt PLC control system and with fully automatic design.
The whole machine is made of stainless steel and it is fully comply with the food sanitation standards. The popping boba that made by this machine is in beautiful shape and filling can be any taste, bright color and weight is without any variation.
Popping boba is made with jam inside and the outer coating material can be recycled using. The whole set of machines include the jam hopper, SUS pans, flushing system and cleaning system and etc.. All these are made of stainless steel and can be used safely and meet the sanitation standards.

Model	TGP50	TGP100	TGP200	TGP500
Capacity	50 kg/h	80-120 kg/h	200-250 kg/h	500-800 kg/h

Machine Details

In the forming section of popping boba production, the chemical reaction between sodium alginate and calcium ions creates a thin membrane on the surface of juice droplets, maintaining the characteristic burst-in-the-mouth texture. The hopper contains the calcium-infused juice mixture, which is dropped into a rectangular trough filled with a uniformly mixed sodium alginate solution. This contact forms a thin gel-like membrane around the liquid core, resulting in the distinctive popping boba.
The juice mixture in the hopper is dispensed through the up-and-down motion of a plunger. This motion causes the juice to be deposited through a nozzle into the sodium alginate solution, where a chemical reaction occurs.
After the juice mixture reacts in the sodium alginate trough for approximately one minute, it, along with the sodium alginate solution, is poured onto a conveyor belt to continue the reaction. Upon completion of the reaction, the sodium alginate solution is filtered and collected for recycling.
The formed popping boba are transported and collected through a filtration screen. At the end of the production line, a water tank collects the boba, preparing them for the next steps of sterilization and packaging.
Factory Display

Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.

As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.

Packaging & Shipping Wooden Case/Plywood
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrapc. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement

After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.

---
