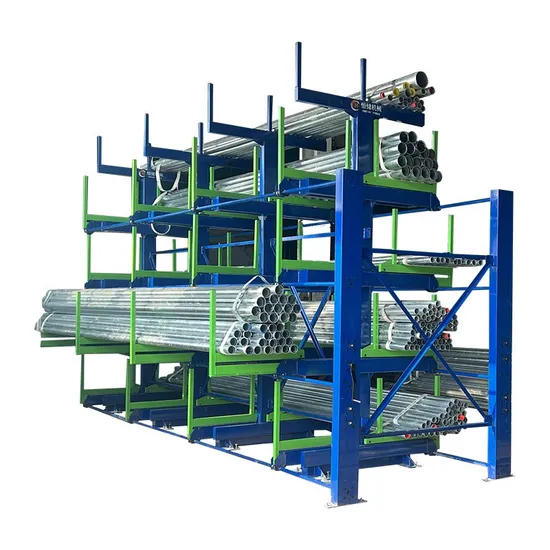

Storage of Steel Pipe Round Tube Long Materials with Roll out Cantilever Racking Circular Tube Storage Rack

Product Description

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

Single-layer load-bearing	3-8 Tons
Colour	White, blue, etc. can be customised
Number of layers	4-12 layers (customisable)
Material	Carbon Steel
Bottom Floor Height from Ground mm	330
Mode of movement	Single side assisted, double side assisted

Features
1.Tilted Cantilever: When the weight of goods causes a downward angle shift in the cantilever, the upward angle (2°~4°) effectively prevents goods from scattering.
2.Cantilever Arm Ends & Base Retainers: Installing retainers at the outer ends of the cantilever arms and on the base prevents goods from rolling and falling, while also safeguarding operators.
3.Specially Designed Cross Braces: Connecting the uprights horizontally and diagonally strengthens the torsional stability of the cantilever rack.
4.Extended Base: The base is intentionally designed longer than the cantilever arms, effectively preventing goods from tilting the overall structure when placed on the arms.
5.High-Strength Base Bolts: Light-duty rack bases are secured with nine M16120 bolts, while heavy-duty rack bases use four M18290 bolts. These high-quality bolts reinforce the connection between the uprights and the base, enhancing the overall stability of the cantilever rack and preventing the risk of toppling.
6.Premium-Quality Bolt Fastening: Grade 8.8 premium expansion bolts (M12*110) securely anchor the base to the ground.
FAQ
Q1: How can I proceed with procurement?
You can contact our technical personnel in the background, and we will provide you with a suitable technical solution and quotation based on your parameters, or leave your contact information such as WhatsApp, WeChat, email, etc. We will have a professional sales team to contact you.
Q2: How do I let you know I need the right shelves?
You can tell us the material you want to put, as well as tell us the size of the material, the number of shelves, and some other detail that you need, then we will make professional solution for you. or leave your contact information, there will be a professional team to answer your questions.
Q3: Do you need a loading robotic arm or an integrated loading and unloading system?
Loading and unloading require the size of the laser cutting machine table to meet the requirements, and it is also necessary to know the specific loading method: board rack, exchange platform, or material warehouse. For specific needs, please leave your contact information to serve you
Q4: Can you provide on-site installation and debugging?
Yes, we can send professional personnel to the factory to install and debug the robotic arm until successful trial operation. Our team has served in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, Mexico and other places.
Q5: How will you ensure the quality of the product?
We have over 40 technical engineers, and we will have professional mechanical engineers to debug and solve any concerns; There is a dedicated quality inspection department that strictly implements ISO9001 quality standards to ensure product quality meets standards. We have professional CE certification to ensure smooth exports. Load testing shall be conducted before the equipment leaves the factory to ensure the safety and stability of the structure.
Q6: Where is your factory located?
Our factory has a modern standard factory building of 10000 square meters located at Building 2-1, Jiyang Industrial Park, Jinan, Shandong, China.
Q7: How can I know the strength of your company?
We can conduct video factory inspections and welcome visitors to our factory for on-site visits.
Q8: What kind of company are you?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise that integrates research and development, production, sales, installation, and service. The company focuses on intelligent sheet metal material warehouses, drawer style sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading series, heavy-duty sheet metal and pipe storage shelves. We have a professional technical team and advanced production equipment, committed to providing high-quality and high-performance mechanical products and solutions for global customers.

---
