Best Sale Xcm G Xg5390rt Scissor Lift Good Price

Product Description

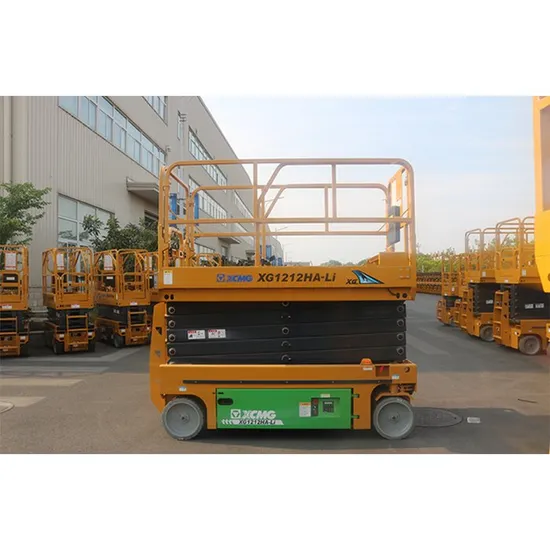

Detailed Photos
Product Parameters

Item		Metric	Imperial
Machine	a.Length (without ladder)	4.86m	15 ft 11 in
Dimensions	b.Width	2.286m	7 ft 6 in
	c.Height (Platform Folded)	3.17m(2.51m)	10 ft 5 in/8 ft 3 in
f.Wheel base		2.85m	9 ft 4 in
Wheel track		1.995m	6 ft 7 in
Minimum ground clearance		253mm	10 in
Dimension	d.Length	3.98m	13 ft 1in
of working platform	e.Width	1.83m	6 ft
	Height	1.329m	4 ft 4 in
	Extension length of auxiliary platform	1.45m/1.14m	4 ft 9 in/3 ft 9 in
Total weight of machine		8000kg	17637lbs
Maximum height of platform		16.1m	52 ft 10 in
Minimum height of platform		2m	6 ft 7 in
Maximum working height		18.1m	59 ft 5 in
Minimum turning radius (inner wheel/outer wheel)		2.5m/5.6m	8 ft 2 in/18 ft 4 in
Work platform lift capacity		680kg	1499lbs
Work platform lift capacity - platform extended		230kg	507lbs
Work platform lift time		55s	55s
Work platform descend time		55s	55s
Maximum Drive Speed - Lowered		6.1km/h	3.8 mph
Maximum Drive Speed -Elevated		1.1km/h	0.68 mph
Maximum theoretical gradeability		0.4	0.4
Tilt warning angle (side, forward, and backward)		2°/3°	2°/3°
Engine	Model	V2403-M-DI	V2403-M-DI
	Rated power/speed	36kW/2600rpm	48 hp/2600rpm
	Manufacturer	Kubota	Kubota
Tire		Rough terrain solid tire / 33×12-20	Roug

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, Z F GEAR BOX, etc.

---
