FRP Pressure Vessel Manufacturer Industrial Seawater Purify Equipment RO Water Filter Element Vessel 8inch FRP Membrane Housing for Sewage Treament System

Product Description

Product Description

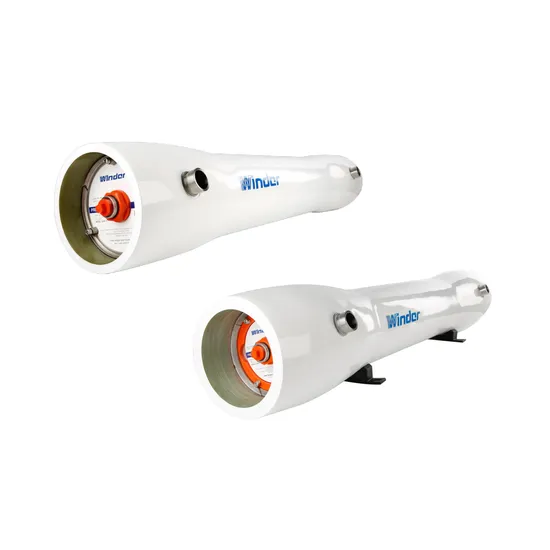

The 8" side port FRP membrane housing from Winder is designed to withstand working pressures ranging from 300PSI to 2000PSI. The opening position and material can be customized according to customer requirements. It can accommodate 1 to 8 core membrane elements. We have a daily production 300 FRP membrane housings. This membrane housing is compatible with various international standard membrane elements, including those from DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, and more. Manufactured according to AMSE specifications, this FRP membrane housing has undergone rigorous testing. It has passed a cyclic water pressure test over 100,000 times and a burst test at 6 times its design pressure. Additionally, it has obtained certifications such as ISO 9001, ISO 14001, OHSAS 18001, Drinking Water Sanitation, and CE certification.
This membrane housing is suitable for use in various complex media environments. Its standard color is white, but other optional colors are also available.

	8inch side port/lower pressure	8Inch side port/high pressure
Model	W80S300/450	W80S600/1000/1200/1500/1800/2000
Design Pressure	300/450PSI	600/1000/1200/1500/1800/2000PSI
Cyclic Test	100,000 times	100,000 times
Burst Pressure	6 Times	6Times
Element Quantity	1-8	1-8
Operating pH Range	pH 3-11	pH 3-11
Operating Temperature	-10ºC-66ºC(14ºF-150ºF)	-10ºC-66ºC(14ºF-150ºF)
Feed/Concentration Port	DN40/1.5"	DN40/1.5"
Permeate Port	1" NPT	1" NPT

8" Frp membrane housing accessories
Production process
Winding → Hole openning → The water pressure test → Polishing → Labeling → Packaging
Our Advantages In order to make up for the abrasion resistance of FRP, embedded steel rings were added to it. Winder® products will wind the embedded ring in the membrane housing during the winding process, which is integrated with the membrane housing and is not easy to fall off. The size and thickness of the embedded ring is proportional to the pressure of the membrane housing. The larger the pressure of the housing, the steel ring will thicken, so that the membrane housing and the pressure head are more firmly connected. The embedded rings are all made of stainless steel 316L, which is more resistant to corrosion and higher temperatures, and has a long service life.
The inner wall of the membrane housing is as bright as a mirror, which can facilitate the disassembly and assembly of the membrane core; it can ensure that the membrane housing has no leakage problem.
The design of the red plug: the production material is ABS modified raw material, which is more durable; the design of the four corners is more convenient and quick to install.
π-shaped silicone ring: using food street silicone raw materials, this design is double-sealed, double-safe, leak-proof and reliable, and the quality is more stable.
There is a unique ID code on the inner wall of each membrane housing, which is used as an anti-counterfeiting mark and can also make the model of the membrane housing clear at a glance.
Frp pressure tank and Frp membrane housing laboratory
Recommended by seller

If you need anything, Please contact me!

What clients say?

Company Profile
HeBei ChengDa Water Technology Co., Ltd. (Abbreviation: Chengda Water Technology), was found in 1976 and is a professional company specializing in the production and export of FRP pressure vessels. Factory covers an area of 20 acres and has 200 employees, have a professional team of engineers. We are a high-tech enterprise engaged in water treatment products research and development, production and sales. Registered trademark brand: Winder, Winder - G, ARCLION. Brand products: FRP Membrane Housing, Frp Softener Water Tank, ST/DTRO FRP Housing, Tubular Membrane Housing, High Flow Cartridge Filter Housing, Online Cleaning Pressure Vessels, Fast dismantle FRP Membrane Housing, Reverse Osmosis Membrane Element; Filter Housing, FRP non - standard (customized) tanks, Mixed bed tank (ion exchange tank), PE BrineTanks, Oxygen Cones, Nitrogen Sealed Water Tanks, Filter Sand Tanks, Ion Exchange Resins, Water Distributor and other one-stop water treatment manufacturers.
Chengda Water Technology takes "Higher Technology, Cleaner Water, Cleaner Future" as our corporate purpose. Our R&D team has joined forces with Wuhan University of Technology to use more advanced winding equipment and production technology to produce world-class products.
The products have passed the CE certification, NSF certification, the international ISO9001 quality management system certification, and the domestic hygiene license approval documents and other standards and specifications. We also have a number of self-developed products and production equipment, and become a leader in the water treatment FRP pressure vessel manufacturing industry. Application
Exhibition
Certifications

FAQ
Q: Can you offer sample before mass order?is it free or extra? A:Yes samples will be kindly arranged for your confirmation, we provide free sample only need you pay the freight cost. Please contact us for more details. Q: Can I visit your factory? A: Sure,welcome to visit our factory.
Q: What about the lead time for mass production?
A: Our production time: 10-15 days for regular models 3*40HQ.
Q: Can you put our Logo on the product?
A: Yes, of course. We can put your logo on the product. Q: Can I visit your factory? A: Sure,welcome to visit our factory.
Q: How can we guarantee quality?
A: Cyclic fatigue test: more than 100,000 times
Burst pressure: more than 4 times of the design pressure.
Q: What can you buy from us?
A: FRP Pressure Tank, FRP Pressure Vessels, Filter Housing, FRP Membrane housing, High Flow Cartridge Filter Housing.

---
