12HP Power Tiller and Walking Tractor, Factory Supply

Product Description

Goods Description:
GN121 walking tractor are traction drive dual -purpose walking tractor ,this machine is widely used in the rice paddy fields, upland plains, mountainous and hilly areas, coupled with the corresponding farm machinery for plowing rotary tillage harrowing ,planting ,harvesting ,pumping ,transportation, spraying pesticides and so on.
For this model can work with independent seat assembly when rotary land or plow land or other work.
The tractor was created with the expectation of a European market, passed laboratory tests and certification in the European Union.
The six-speed forward and reverse MSD200 gearbox, the 2020 novelty, was designed for tractors weighing over a ton in order to withstand the extreme loads that the ZS1100N single-cylinder power engine can deliver
Advantages:
1. GN walking tractor
2. Power12-22HP, direct injection Radiator type diesel engine
3. Strength model
4. Suit for farm work

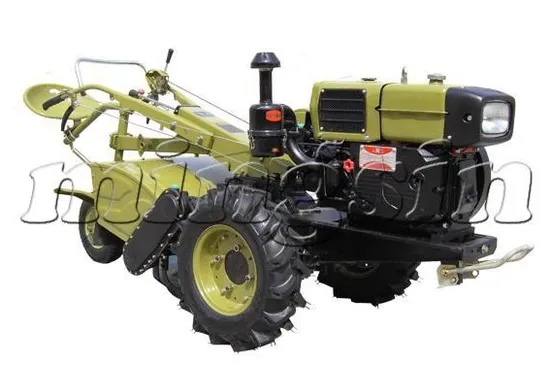

The MINGSIN Brand Power Tiller / Two-wheel tractor Model GN-121 is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Technical Specifications:

Model Unit GN121 Structure weight Without rotavator kg 350 With rotavator 460 Working weight (with rotavator) kg 503 Turning speed of rototilling shaft rpm 199/250 Overall dimensions (LxWxH) mm 2950 x 980 x 1240 Number of blades PCS 18/20 Rototilling width mm 600 Type of tractor Single axle, dual-purpose for both traction & drive Travelling speed Forword Km/h 1.41, 2.51, 4.21, 5.22, 9.27, 15.56 Reverse 1.11, 4.12 Type size 6.00-12 Wheel track mm 810, 750, 690, 570(normally use 810) Min. ground clearance mm 210 Min. turning radius m 1.1 ( with no rotavator ) Model of engine ZS195N Type of engine Horizontal 4-stroke Bore x stroke mm 95×115 Total displacement L 0.815 Compression ratio 20:01 Turing speed of crankshaft rpm 2000 1-hour rated output KW/hphp 9.7/13.2 12-hour rated output KW/hp 8.82/12 Specific fuel consumption g/kw.h ≤245 Specific lube oil consumption g/kw.h ≤2.00 Cooling mode Condenser (Radiator) Main farm implements (optional) Anti-skid steel wheel Model 100-680 Double-furrow plough Model 1LS-220 Disk plough Model 1LS-220Y Power driven disk plough Model 1LYQ-320 Sprinkler Model 8Y-80 Swather/reaper Model 4GL-120 Trailer 7C-1.5 (Standard) Trailer 7C-1.5BH (Hydraulic dumping)

---
