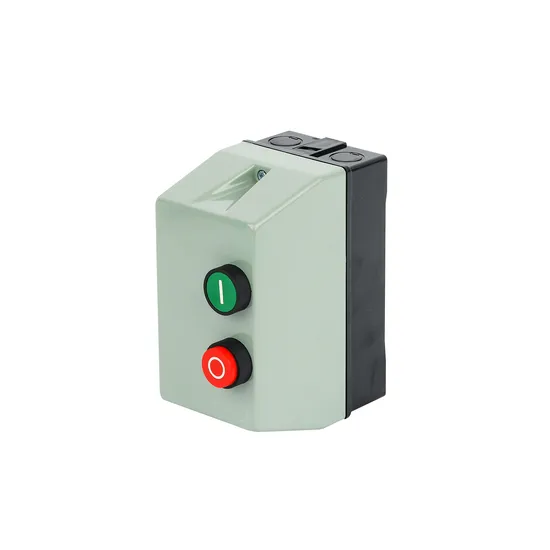

New Type Magnetic Starter with CE Approval Le1-D18

US$6.57 100 Pieces (MOQ)

Basic Info.

Model NO.

LC1E18

Phase

Main Circuit Rating Voltage

380V

Main Circuit Rating Current

100A

Type

Ac Contactors

Starter Type

Thermal Overload

Connection

Thermal Relay

Case Material

Plastic

Standard

IEC

Inside Part

Relay+Contactor

Component

Micro Switch

Wire Connection

Yes

Water Proof

IP54

Waranty

18 Month

Function

Motor Starter

Transport Package

by Cartons

Specification

silver contact point

Trademark

CNJUHO

Origin

Zhejiang

HS Code

8536300000

Production Capacity

1000000

Packaging & Delivery

Package Size

8.00cm * 7.00cm * 13.00cm

Package Gross Weight

0.210kg

Product Description

1.Application:
LE1 series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.
2.Main specification:

Type	Rated Current(A)	Maximum Power AC3 duty (KW)						SuitableThermal Relay(A)
Type	Rated Current(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	SuitableThermal Relay(A)
LE1-09	9	2.2	4	4	4	5.5	5.5	JR28 D1312 JR28 D1314
LE1-12	12	3	5.5	5.5	5.5	7.5	7.5	JR28 D1316
LE1-18	18	4	7.5	9	9	10	10	JR28 D1321
LE1-25	25	5.5	11	11	11	15	15	JR28 D1322 JR28 D2353
LE1-32	32	7.5	15	15	15	18.5	18.5	JR28 D2355
LE1-40	40	11	18.5	22	22	22	30	JR28 D3353 JR28 D3355
LE1-50	50	15	22	25	30	30	33	JR28 D3357 JR28 D3359
LE1-65	65	18.5	30	37	37	37	37	JR28 D3361
LE1-80	80	22	37	45	45	55	45	JR28 D3363 JR28 D3365
LE1-95	95	25	45	45	45	55	45	JR28 D3365

3.We commit:
4.Office and working department:
5.Certificate:
6.Shipping
