Product Details
Product Description
Product Description

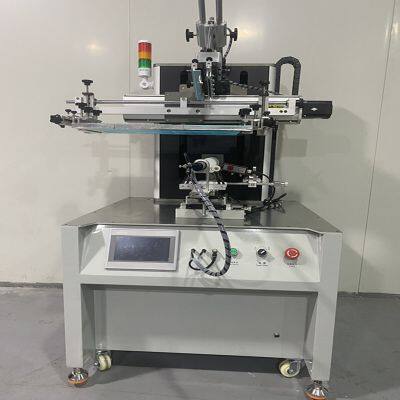

Meichao Cursor Auto Alignment Curved Screen Printing
Product name : Curved screen printing machine cursor automatic positioning
I. Introduction of the machine
This is a high-precision circular surface servo cursor alignment screen printing machine, running fast, stable performance, can be formed in a small factory space screen printing production line, especially suitable for printing high precision circular products, and no positioning point need to color circular products. Left and right servo rotation servo up and down electric control, printing only need to input parameters to achieve the required printing data, accurate to two decimal places that is 0.01MM.
(1). Touch screen human-machine interface with programmable controller, adjustment does not rely on experience but data
(2). Full touch screen man-machine dialogue control mode, easier to adjust the machine, fingertip control can meet the printing needs
(3). Automatic four-digit counter to count the number of prints.
(4). Double column lifting structure, stable and high precision.
(5). Left and right travel data control.
(6). Printing action design a variety of printing cycles, users can freely choose the printing process.
(7). The position of the net frame can be adjusted before and after, around, level and height.
(8). Scraper constant pressure device to ensure stable pressure in the printing process
(9). The machine running speed is fast and stable.
2. Technical parameters
Printing surface: cylinder surface
Printing color: can be colorful printing
Operating voltage: 220V 50-60mhz /100W
Compressed air pressure: 0.5-0.7MPA
1, starting mode: panel/foot switch
2, scraper pressure control: pressure regulator constant pressure
3, up and down drive mode: Toth motor
4, left and right drive mode: Huichuan servo
5, rotary drive mode: Huichuan servo
6, left and right stroke: 550MM
7, up and down stroke: 100MM
8, the maximum screen size: 300*550MM
9, the maximum product diameter: 100MM
10, maximum product printing length: 300MM
11, Alignment accuracy<0.02MM
12, color code color detection automatic alignment.
13. Machine weight: 190KG
14, machine size: 80*97*130cm
15, power: 1000W
16, machine speed: 1500
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full
refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
>>
