Product Details
Product Description
Product Description
Features:
1.The metal laser cutter's controller with a touch screen operating system:
Fiber laser controller installed on the computer (English version of Windows XP system);
Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.
2.The metal laser cutter is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The metal laser cutter with Raycus 1000W (IPG1000W) fiber laser generator：photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
5.Universal ball screw and jagged shaped working platform, loading metal material fast and keeping stable feeding work.jagged platform fixing strip can fix material to reduce the spark splash when cutting.
6.The cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has good dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.

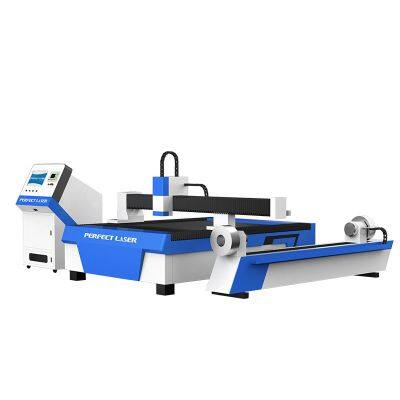

8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.
Technical Parameters:
Name
| Metal sheet and pipe
fiber laser cutting machine
|
Model
| PE-F3015B
|
Maximum run speed
| 90m/min
|
Laser Wavelength
| 1080 nm
|
Minimum cutting line width
| 0.1mm
|
Rated output power
| 1000W
|
X, Y-axis positioning accuracy
| ≤±0.01mm
|
Repeated positioning accuracy of the table
| ≤±0.01mm
|
The maximum load of the workbench
| 800KG
|
Effective processing format
| 1500*3000mm
|
Z-axis travel
| 120mm
|
Volume
| 4.6*2.3*1.8m
|
Power
| 12KW
|
Water cooler
| 2kw
|
Electricity power
| 380v 50Hz±10%
|
Red light spot position
| yes
|
Auxiliary gas
| Oxygen, nitrogen
|
Pipe type
| Round,oval,special-shaped pipe
|
Pipe Length
| <12m
|
Cutable Pipe Length
| <6m
|
Diameter
| 1mm-160mm
|
>>
