US$34,000.00-51,000.00
|
1 SET
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Max. Swing Dia. Over Bed
560mm
Max. Turning Length
470mm
Spindle End Type
A2-6/A2-8
Spindle Speed
4000/3500rpm
Spindle Motor Power
11/15kw
Transport Package
Wooden Case
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

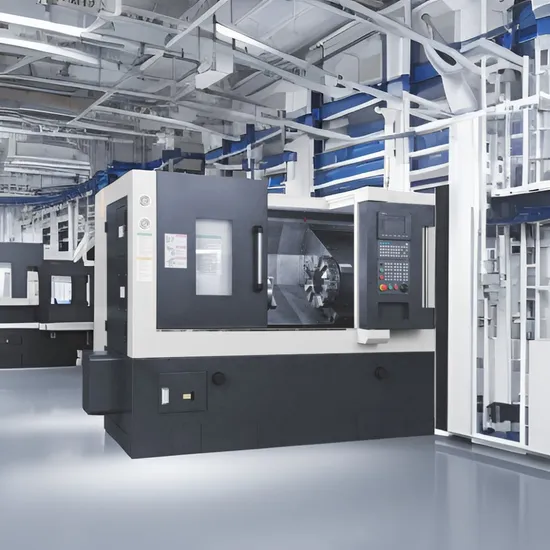

Product Description
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 30°integral slant bed design
- X,Z axes adopt 45mm big width linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H50T mount 12T hydraulic-servo tool turret
- H50TC mount C axes and 12T Powered tool turret
- H50TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:
Item | Specification | Unit | BL-H50T | BL-H50TC | BL-H50TY |
Capacity | Chuck size | / | 8''(10''*,12''*) |
Max. swing dia. over bed | mm | Φ560 |
Max. swing dia. over saddle | mm | Φ300 |
Max. turning length | mm | 485(8'' chuck); 475(10'' chuck*); 440(12'' chuck*) | 355(8'' chuck); | 450(8'' chuck) |
Max. turning dia. | mm | Φ400 | Φ290 | Φ330 |
Standard turning dia. | mm | Φ200(8'' chuck); Φ250(10'' chuck*); Φ300(12'' chuck*) | Φ200(8'' chuck) | Φ200(8'' chuck) |
Spindle | Spindle bore | mm | Φ66(Φ86*) |
Spindle end type | / | A2-6(A2-8*) |
Spindle speed | rpm | 4000(3500*) |
Max. bar through dia. | mm | 51(74*) |
Spindle motor power | kw | 11(15*) |
X/Z axes | X/Y/Z axes linear guideway type | / | BALL type |
X/Y/Z axes linear guideway width | mm | 45/30/45 |
X/Y/Z axes ball screw O.D. | mm | Φ32/Φ32/Φ40 |
X/Y/Z axes ball screw pitch | mm | 10 |
X axes travel | mm | 230 | 250 | 220 |
Y axes travel | mm | / | / | 90 |
Z axes travel | mm | 610 | 500 | 500 |
X/Z axes rapid moving speed | m/min | 24/24 |
Y axes rapid moving speed | m/min | / | / | 8 |
Tool turret | Tool turret type | / | 12T Hydraulic-servo tool turret | 12T BMT55 Powered tool turret | 12T BMT55 Powered tool turret with Y axes |
Toolshank size | mm | 25×25, Φ40 | 25×25, Φ32(ER32) | 25×25, Φ32(ER32) |
Tailstock | Tailstock quill taper | / | MT4# |
Tailstock quill dia./travel | mm | Φ80/80 |
Accuracy | Positioning accuracy(X/Z) | mm | 0.008/1000 |
Repeat positioning accuracy(X/Z) | mm | ≤0.005 |
Others | Overall size | mm | 2600×1800×1900 |
N.W. | kg | 4000 | 4100 | 4200 |
*As option
Main parts list:
Item | Brand |
Spindle unit | TAIWAN-ROYAL |
Tool turret | GERMANY-SAUTER/TAIWAN-YULIN/SWIFT |
Ball screw | JAPAN-THK |
Ball screw bearing | JAPAN-NSK |
Linear guideway | JAPAN-THK |
Lubrication system | TAIWAN-ISHAN |
Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
Hydraulic parts | TAIWAN/JAPAN |
Heat exchanger | Joint-venture |
Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC 0i TF CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
