Specialized Rotary Joint for Packaging, Ink Roller, and Printing Industry Applications

Product Description

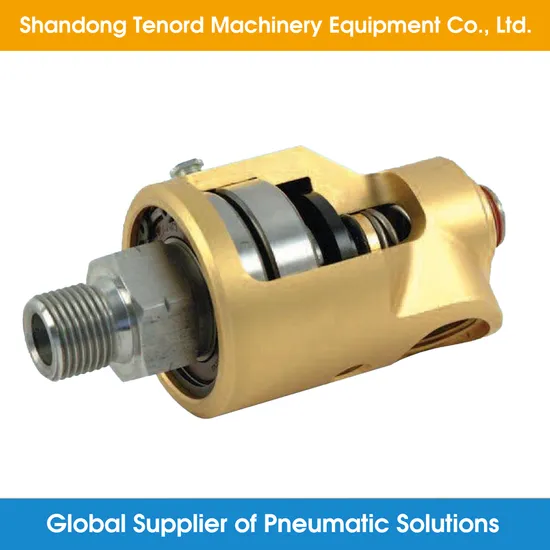

HD Series Cooling System Rotary Joint Technical Specifications

Operational Parameters:

Speed Range: 500-3500 rpm (ISO 10816 vibration compliant)

Pressure Rating: 10-30 bar (gauge)

Temperature Range: -15°C to +150°C (ethylene glycol compatible)

Compatible Media: Water, compressed air (ISO 8573-1 Class 2), coolant, thermal oil (VDMA 24364 standard)

Port Sizes: 1/4" to 4" NPT/BSP (ASME B1.20.1 compliant)

Connection Types: Threaded (DIN 3852) / Flanged (EN 1092-1)

Material Configuration:

Body: Naval brass (CuZn39Pb3, CW712R)

Rotating Shaft: 304 stainless steel (AISI 304)

Bearings: premium sealed bearings (ABEC-3 precision grade)

Technical Highlights:

Compact Design (30% smaller than conventional models):

Weight reduction up to 45% (compared to cast iron joints)

Frictional torque <0.8 N·m at 3000 rpm

Balanced Seal Mechanism:

Multi-material tribo-pairs:

Antimony-impregnated graphite (DIN 2791)

Phosphor bronze (C54400)

Tungsten carbide alloy (ISO 13356 compliant)

Automatic compensation for seal wear (0.2mm max. axial play)

Anti-Contamination Design:

Hardened sealing surfaces (HRC 58-62) resist scale/rust

3-stage particle exclusion grooves (>50μm debris blockage)

Industrial Applications:

Cooling tower rotating distributors (CTI Standard ATC-105)

Plastic injection molding machine chillers

Food processing CIP systems (3-A Sanitary Standard)

Offset printing drum cooling systems (ISO 12647-2)
