High-Quality Pet Bottle Blowing Machine From China at Competitive Prices

Product Description

Product Description
What is pet botttle blow molding machine?
pet botttle blow molding machine is one kind of two step stretch type bottle making plant.
pet botttle blow molding machine is suitable to produce plastic bottles based on PET raw material.
pet botttle blow molding machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc
Detailed Photos
Product Parameters

MODEL	DEG-5L (One Blower & One Heater)
Clamping Force	150KN
Clamping Stroke	330 MM
Max. Stretching Stroke	440MM
Number of Cavities	1 & 2 Cavity
Theoretical Output	900 BPH(500ml, 2cav), 300 BPH(5L, 1cav)
Max. Mold Thickness	280MM
Voltage Standard	380v/3PH/50Hz
Total Power (Full Loaded)	10KW
Max. Container Volume	6L
Neck Diameter Range	18-120mm
Max. Container Diameter	300mm
Max. Container Height	450mm
Low Air compressor	10Bar
High Air compressor	30-40Bar
Blow molding machine	1850*600*1800mm
Preform Heater	1800*700*1400mm
Net Weight	1000kgs

Certifications
Packaging & Shipping

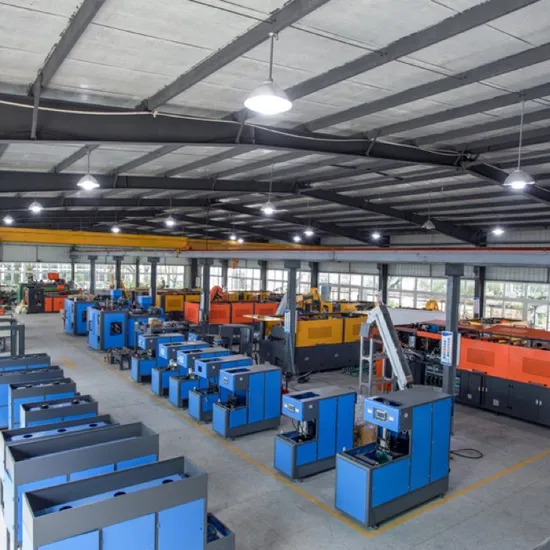

Company Profile
FAQ
Q1 :What kinds of product you supply?A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etcQ2: How to tell your enquiry ?A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.Q3: How to choose suitable machine?A3: Tell us your requirement, and we will advise you.Q4: Do you have technical support after we purchased your machine?A4: - We will provide video technical support,online support.- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.

---
