M24C08-WMN6TP M24C08 EEPROM Memory 8KBIT I2C IC M24C04-WMN6TP M24C32-RMN6TP

US$0.10-340.00 50 Pieces (MOQ)

Basic Info.

Model NO.
M24C08-WMN6TP
Memory Card Application
Cell Phone
Interface
SATA
Card Slots
Single
Installation
Internal
Speed Grade
Class 10
Mfr.
ST
D/C
23+
Package
SOIC8
Quality
Genuine New Original
Product status
Active
Transport Package
Box
Specification
integrated circuit
Origin
China
HS Code
8542399000
Production Capacity
1000000PCS

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

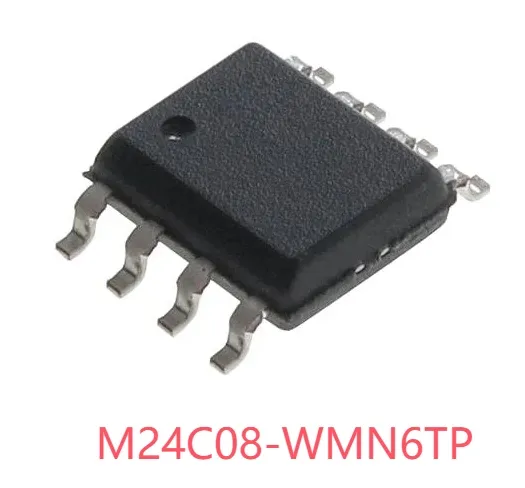

description M24C08-WMN6TP : 1K X 8 I2C/2-WIRE SERIAL EEPROM, 8 Pin Plastic SOP
Mfr. Part#: M24C08-WMN6TP
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR

Memory Size: 8 kbit
Interface Type: 2-Wire, I2C
Maximum Clock Frequency: 400 kHz
Organization: 1 k x 8
Package / Case: SOIC-8
Access Time: 900 ns
Supply Voltage - Min: 2.5 V
Supply Voltage - Max: 5.5 V
Mounting Style: SMD/SMT
Data Retention: 40 Year
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Series: M24C08-W
Packaging: Reel
Active Read Current - Max: 2 mA
Height: 1.65 mm
Length: 5 mm
Operating Supply Current: 2 mA
Operating Supply Voltage: 3.3 V, 5 V
Product Type: EEPROM
Programming Voltage: 2.5 V to 5.5 V
Factory Pack Quantity: 2500
Subcategory: Memory & Data Storage
Supply Current - Max: 2 mA
Width: 4 mm
Unit Weight: 0.005044 oz

The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 1 K × 8 bits. The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a clock frequency of 400 kHz.
Applications
• Digital TV power supply
• High definition Blu-ray™ disc players
• Networking home terminal
• Digital set-top box (STB)
• Surveillance



Certificates
Product Packing details
Why choosing us
Located in Shenzhen, the electronic market center of China. 100% guarantee components quality: Genuine Original. Sufficient stock on your urgent demand. Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturing Faster shipment: In stock components can ship the same day . 24 Hours service
Notice:
Product images are for reference only. You can contact sales person to apply for a better price. For more products inquiry, Pls do not hesitate to contact our Sales team.
