Pipe Tool Roll Grooving Machine (TWG-IVA)

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
TWG-IVA
Customized
Customized
Theory
Inverter
Application
Industry
Type
Pipe Cutting Machine
Phase
Three Phase
Power
2200W/3000W
Voltage
220V/230V/240V/380V/400V/415V/440V
G.W
340kgs
Packing Size
102*75*147cm
Output
15rpm
Transport Package
Free of Fumigation Packing Carton
Specification
8′′-24′′ SCH40 Steel Pipe
Trademark
TUWEI
Origin
China
HS Code
84552290
Production Capacity
30, 000 PCS/Year

Product Description

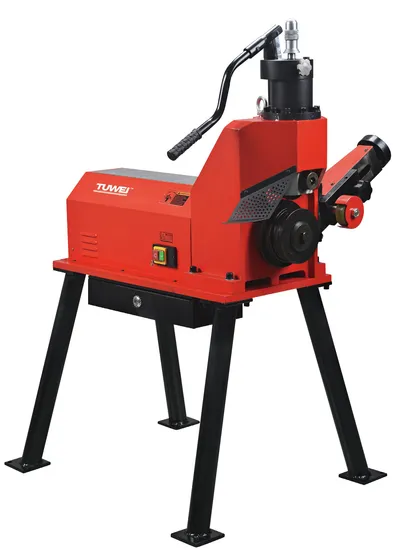

TWG-IVA ROLL GROOVING MACHINE
This machine is designed for grooving 8"-24" steel pipes with a maximum wall thickness of 12mm. It's specified tool for the connection of heavy duty couplings and grooved pipes.
Equipped with new hydraulic pump and stroke limitation devices to make the depth of grooves more precisely and effectively
Powered by high-performance gear reducing motor, Equipped with the guide wheel unit ensures high quality grooves and high working efficiency
Equipped with a foldable hydraulic steel pipe support to make operation convenience and save labour .
Technological Parameters
Max. diameter allowed for pipes to be channeled..............................630mm
Min. diameter allowed for pipes to be channeled...............................219mm
Max. wall thickness allowed for pipes to be channeled......................13mm
Max. working pressure..................................................................…..10000kg
Max. oil cylinder pressure ..................................................................35Mpa
Capacity of oil tank...............................................................................200ml
Speed...................................................................................................15 rpm
Net weight............................................................................................284kg
Gross weight......................................................................................…340kg
Machine description
Roll grooving machine is a kind of pipe tool for workers to make groove then connect pipe by using grooved joints such as couplings. The principle of grooving machine is hard extrusion, when the upper roller touches the pipe surface, turn on the motor, handle the hydraulic oil pump to make the pipe rotate. The upper roller can press the pipe by shaking the handle of hydraulic oil pump, then form a groove. Roll grooving machine is widely used in fire-fighting system, Sprinkler systems, installations, larger heading units, industrial use and mining. The grooving machine is characterized by compact structure, flexible operation and beautiful shape.
Company Information TUWEI is the leading manufacturer of pipe tools in china. Our major products are roll grooving machines,
pipe cutting machines, pipe threading machines, hole cutting machine.....In the past years, we have sent our
machines to many countries and get well reputations from all the customers. With the good reputations some
big brands come to us and start cooperation with us. For example the Victaulic, Rothenberger and Tyco-Grinnel.
