Universal Center Lathe Price C6136 China Engine Horizontal Lathe

US$5,200.00-6,800.00 1 station (MOQ)

Basic Info.

Model NO.
C6136
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Tool Station
Power Source
Joint Drive
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
360mm
Center Height
180mm
Max.Swing Over Toolpost
190mm
Max.Swing in Gap
540mm
Max.Length of Workpiece
750/1000/1500/2000mm
Width of Bed
360mm
Hole of Spindle
52mm
Range of Spindle Speeds
30-1600rpm
Spindle Motor
3kw
Transport Package
Plywood Cases
Specification
2250× 1130× 1540
Trademark
Schuler
Origin
Shandong China
HS Code
8458190000
Production Capacity
200 Piece/Year

Product Description

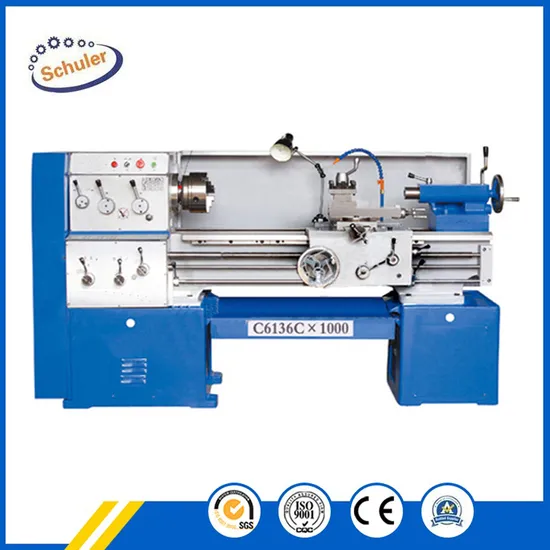

Universal Center Lathe Price C6136 China Engine Horizontal Lathe
Product Features:
Horizontal Lathe Machine Feature:
1. High-strength cast iron
2, the rail is high-frequency quenching, inlaid with high-quality wear-resistant pieces.
3, automatic centralized lubrication
4, the spindle box gear precision grinding, low noise.
5, more types of threads
6, electrical safety performance is good, high reliability.
7, with electromagnetic brake, bed color for a variety of options.
Random attachments:
1·3-jaw chuck
2·Exchange gear
3· Mohs 3 stays top
4·Mohs 5/3 reducer sleeve
5·Oil gun
6·Baffle plate
7·bed foot
8·Toolbox and tools
9·oil pan
Optional accessories:
1· 4-jaw chuck + tray
2·Flower plate
3. Center frame
4. With the knife holder
5. Top activities
6. Drill chuck + drill clamp
7. Screw guard
8. Chuck cover
9. Digital display
10. Taper model
11. Cooling system
12. polished rod safety joint
13. Scheduled institutions
14. Two-axis digital display
15.·Quick change tool holder
Horizontal Lathe Machine Technical Parameters:
SPECIFICATIONS C6136/C6236
Center height 180mm
Max.Swing over bed 360mm
Max.Swing over toolpost 190mm
Max.Swing in gap 540mm
Effective gap length 200mm
Max.Length of workpiece 750mm / 1000mm/1500mm/2000mm
Width of bed 360mm
Spindle taper Mohs 6 MT6
Thru-hole of spindle 52mm
Range of spindle speeds 30-1600r/min(12steps)
Cross toolpost travel 240mm
Compound toolpost travel 140mm
Tail stock center travel 90mm
Tail stock sleeve taper MT4
Spindle motor 3/4KW
Range of metric threads(kinds) 0.45-20mm(30Species)
Range of inch threads(kinds) 80-1.75n/1"
Longitudinal feed per spindle rev. 0.039-1.1mm
Cross feed per spindle rev. 0.018-0.55mm
Overall dimensions for 750mm 2000×1130×1540
Overall dimensions for 1000mm 2250×1130×1540
Net weight of 750mm 1400kg
Net weight of 1000mm 1500kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Lathe Machine Details:
Lathe Machine In the Workshop:
Lathe Machine Packaging:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
