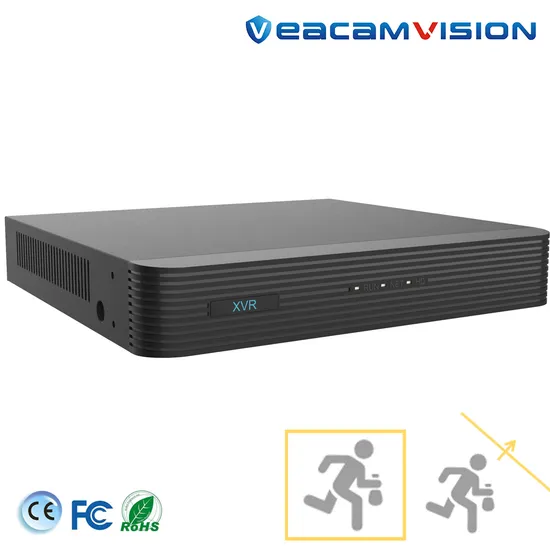

8CH Xvr Onvif CCTV DVR Hybrid Recorder 2mn 5in1 Xvr for Ahd Camera Analog Tvi Cvi Camera NVR for IP Cmaera

US$22.00-24.00 1 Piece (MOQ)

Basic Info.

Model NO.

VCXVR-508UA1S

Compressed Format

H.264

Operating System

Windows

Application

CCTV Recorder

Interface Type

BNC/VGA/HDIM

Video Input/Output

8 Channel

Audio Input/Output

8 Channel

Remote Control

Without Remote Control

SATA

Analog Input

IP Input

Audio in/out

Megapixel

2mn

Transport Package

Carton Box

Specification

1000g

Trademark

N/A

Origin

China

Production Capacity

50000PCS

Packaging & Delivery

Package Size

32.50cm * 28.00cm * 27.50cm

Package Gross Weight

1.000kg

Product Description

Product Description
8CH XVR Onvif CCTV DVR Hybrid Recorder 2MN 5IN1 XVR for AHD Camera Analog TVI CVI Camera NVR For IP Camera Key Features Support H.265/H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 8-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coax cable Product Parameters

Model	VCXVR-804UA1S
Video/Audio Input
Analog Video Input	8-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (Up to 48Mbps after all analog channel conversion)
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite/1080P/720P/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@12fps	D1@12fps
	4MP Lite@15fps	D1@15fps
	2MP@15fps	D1@15fps
	720P@30fps	D1@30fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
General
Power Supply	12V DC Power Consumption: ≤ 8 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm × 243mm × 46mm (10.2" × 9.6" × 1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )

Detailed Photos

Company Profile
Certifications
Our Advantages

FAQ
