Fully Automatic Honeycomb Paperboard Laminating Equipment for Efficient Production

US$1,000,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HF2400-100G
Sheet Former Type
Honeycomb
Paper Thickness
Normal Specification Paper
Automation
Automatic
Certification
CE
Customized
Non-Customized
Condition
New
After-sales Service
1 Year
Thickness
4-60mm
Speed
100 Meter/Minute
Heating
Steam
Material
Starch/ PVA
Transport Package
7 Conaniter
Specification
82000mm long x6500mm wide x5100mm high
Trademark
Meixun
Origin
China
Production Capacity
10 Sets/Year

Product Description


Unravel the impressive main technical parameters of our cutting-edge equipment, designed to elevate your operations with unmatched precision and efficiency.
parameters Specification
1 Facial paper (width x roll diameter) 2400mm×Φ1400mm
2 Effective width of finished paperboard 1500mm-2400mm
3 Paper weight 140g/M²-- 4 20g/M²
4 Adhesive starch glue
5 Finished paperboard thickness 4-15mm
6 Finished paperboard length 800mm -- 3500mm
7 Maximum production speed of honeycomb paperboard 100m/min (sheet thickness 6mm, honeycomb side length 4.5 mm, core paper weight 80-100 grams, surface paper weight 170grams, paperboard length 2500mm)
8 heating method steam heating
9 Equipment installed power About 230KW _
10 normal production power consumption About 230 KW* 5 0%- 6 0%
11 Total weight of equipment About 187 T (including cadre parts)
12 Equipment Dimensions 86000mm(length)×6500mm (width)×5100mm(height)
13 Direction of machine operation based on customer's needs
1 Finished paper core pulling unit Up and down brush roller conveying Stable conveying and even pulling
2 Paper Core Drying Unit 6 M steam heating, hot air circulation drying, shaping
3 Facial tissue shaftless paper holder Hydraulic shaftless paper holder Convenient
4 Paper preheating 1 Equipped with arc-shaped heating plate (saves steam, good preheating effect). Steam heating , adjustable wrap angle
5 Automatic paper splicer Width 2500 outsourcing
6 Lower core surface glue coating unit Anilox roller gluing, metering roller independent control The upper rubber roller is finely ground, and the amount of glue is uniform and controllable
7 paperboard composite drying group with deep hole drilling steam ironing board
Composite with pressure roller and cotton conveyor belt
Less steam consumption, firm composite, controllable moisture content of paperboard
8 Paper preheating 2 Equipped with diameter Φ 1000 preheating cylinder Steam heating , adjustable wrap angle

9 Upper core surface glue coating unit Anilox roller gluing, independent control of metering roller, the whole gluing part can be raised and lowered The upper rubber roller is finely ground, and the amount of glue is uniform and controllable
10 paperboard composite drying group with deep hole drilling steam ironing board
Composite with pressure roller and cotton conveyor belt
Less steam consumption, firm composite, controllable moisture content of paperboard
1 1 paperboard cooling unit Channel steel frame structure

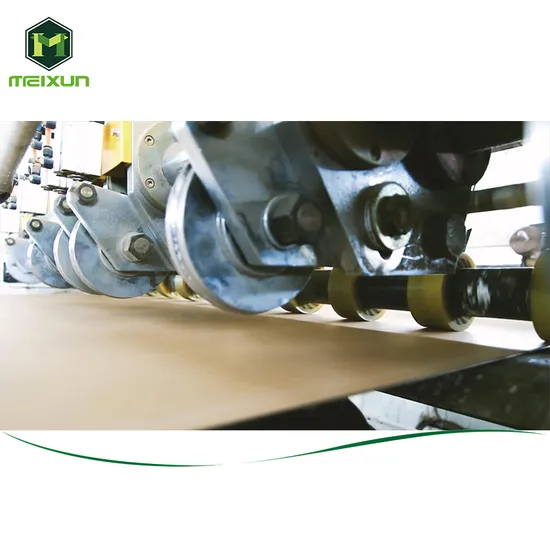

1 2 2500 type servo slitting unit 6 knives 10 lines,
Equipped with an automatic waste suction system.
1 3 Automatic spiral knife cross cutting machine Alloy steel double serrated spiral knife
1 4 2500 type cardboard collecting unit Big longmen Collection
1 5 other Main electrical producing areas : Taiwan , Japan , South Korea , domestic
