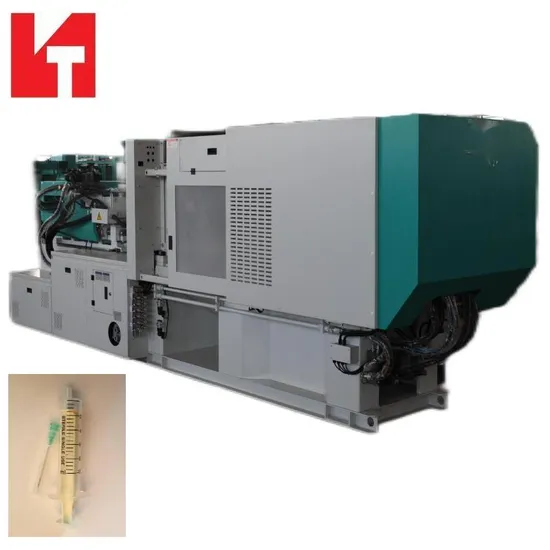

400 Ton Horizontal Injection Molding Machine for Plastic Manufacturing and Customization

US$50,800.00
1-2 Sets
US$49,800.00
3+ Sets

Basic Info.

Model NO.
NT400
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Component
Motor, PLC
Material
Stainless Steel
Applicable Industrial
Manufacturing Plant
Voltage
380V/50Hz 3p+N+E(Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizable
Clamp Force
4000kN
Space Between Tie Bars
730*730
Transport Package
at Seller′
Specification
7.6m*1.85m*2.35m
Trademark
Leantall
Origin
Zhejiang, China

Packaging & Delivery

Package Size
760.00cm * 185.00cm * 235.00cm
Package Gross Weight
16000.000kg

Product Description

Product Parameters
Part Name Unit NT400
Injection Unit SCREW DIAMETER mm 70 75 80
SCREW L/D RATIO L/D 21.4 20 19
INJECTION STROKE mm 390 390 390
NJECTION SPEED Mm/sec 97 97 97
SHOT VOLUME(THEORETICAL) CM3 1501 1723 1960
INJECTION WEIGHT(PS) g 1366 1568 1784
INJECTION PRESSURE Mpa 194 169 148
INJECTION RATE cm³/sec 373 428 487
SCREW SPEED rpm 170
Clamping Unit CLAMP FORCE Kn 4000
OPEN STROKE mm 725
SPACE BETWEEN TIE BARS mm×mm 730X730
MAX.MOULD HEIGHT mm 780
MIN.MOULD HEIGHT mm 250
EJECTOR STROKE mm 150
EJECTOR FORCE Kn 79
EJECTOR NUMBER N 13
Others MAX.PUMP PRESSURE Mpa 16
SEVRO DRIVE POWER Kw 55
HEATING POWER Kw 29.5
MACHINE DIMENSION(L*W*H) m×m×m 7.6*1.85*2.35
MACHINE WEIGHT(ESTIMATE) T 16

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
