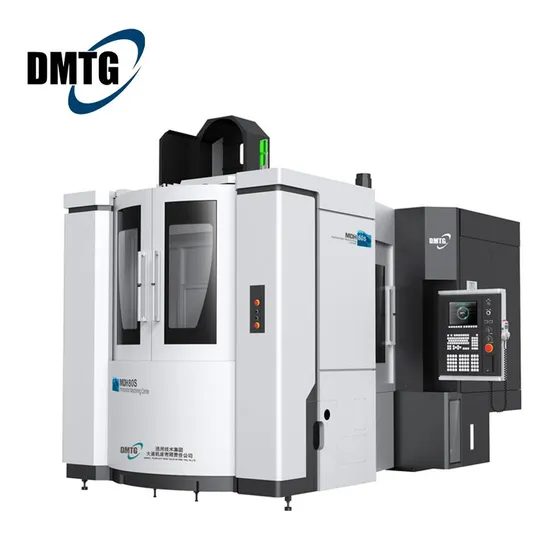

Mdh Orizontal Machining Center China CNC Machine Center

US$200,000.00
1-4 Pieces
US$150,000.00
5+ Pieces

Basic Info.

Model NO.
MDH
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
/
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Specification
/
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

TABLE Worktable Size mm 800*800
Workpiece Size Range mm φ1110*1220
Max Load Of Worktable kg 1300
X/Y/Z Axis Travel mm 1050/900/900
SPINDLE Spindle speed r/min 8000(6000/12000 Optional)
Spindle taper NO.50(7:24)
Spindle drive mode Motorized spindle
Spindle power kw 18.5
Spindle maximum torque nm 24
MOVEMENT X/Y/Z cutting speed m/min 20
X/Y/Z feeding speed m/min 54
ATC SYSTEM Tool magazine capacity 40(60/80/120 Optional)
Tool shank type BT50-45°
Max. tool weight kg 25
Max. tool diameter (w/o adjacent tools) mm φ115
Max.tool length mm 500
Time of tool change (T-T) s 2
ACCURACY X/Y/Z axis positioning accuracy mm 0.01
X/Y/Z axis repeatability accuracy mm 0.006
CONTROL SYSTEM Controller GSK/SIEMENS/FANUC
