3axles 20ton 25ton 28ton 30ton Liquid Gas Road Trailer LPG Tank Semi Trailer

Product Description

PART 1 : COMPANY BRIEF INTRODUCTION
3axles 20ton 25ton 28ton 30ton liquid gas road trailer lpg tank semi trailer
1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field for over 10 years, we have more than 300 types of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .
PART 2:3axles 20ton 25ton 28ton 30ton liquid gas road trailer lpg tank semi trailer specification :

vehicle	Vehicle Type	LPG Semi-trailer		Tank	designed pressure	1.77Mpa
	Vehicle Name	Liquefied gas semi-trailer			Max worked pressure	1.61Mpa
	Overall dimension	11324*2500*3730			designed temperature	50ºC
	Actual Capacity	40.5M3			filling medium	propylene
	Curb weight	13990			corrosion allowance	1.0mm
	Real capcity	17010Kg			capacity	40.5M3
	Fifth wheel loading	13660Kg			heat treatment	Whole body
	rear overhang	/1500			tank dimension	11044×2200mm
	departure angle	-25			Tank thickness	12mm
	axles load	17380Kg			tank material	Q345R
	wheel base	6720+1320			Water pressure test pressure	2.66MPa
	Number of tires	12			aritightness test pressure	1.77MPa
	tire specification	12R22.5		safety value	Model	A412F-2.5-16
	rear track base	1840/1840/1840			Nominar pressure	2.5Mpa
Level gauge	Model	YWJ-25			Nominar diameter	DN80
	Type	rotary tube gage			Valve Dia	53mm
	Nominar pressure	2.5Mpa			unseal pressure	2.27-2.37Mpa
	test range	50-22050mm			reseating pressure	0.9times than unseal pressure
	precision	2.5			Opening pressure	1.90MPa
				loading and unloading device	Model	gas phase	YKAG-3.3-6
cut device	Model	gas phase	QGJ43F-2.5-8			liquid phase	YKAG-3.3-7
		liquid phase	QGJ43F-2.5-7		Nominar diameter	gas phase	DN25
	Nominar diameter	gas phase	DN25			liquid phase	DN50
		liquid phase	DN50		nominar pressure	3.3Mpa
	operated method	pullout Mechanical type			Type	quick fitting
	semienclosed cutout temperature	70±5ºC		Special function	BPW axle 13T,safety valve ,JOST outrigger ,Liquid Indicator ,pressure indicator,termperature indicator,Emergeny Cut-off Valves ,fire bottle ,antistatic earthing tape ,protective guard ,tire security board ,
	Type	combine cut value and overload limited value
	cut time	≤10s

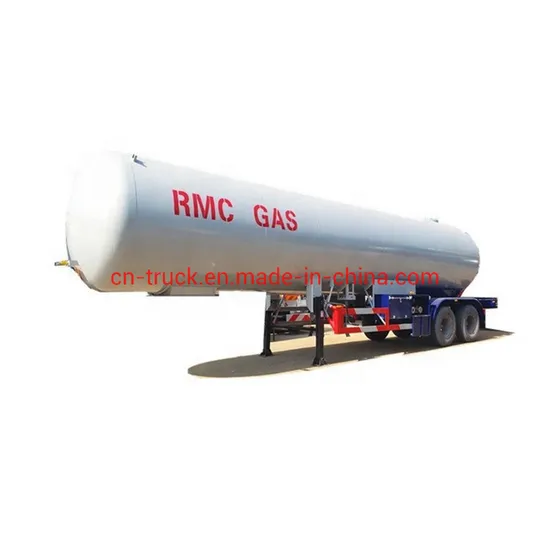

PART 3:3axles 20ton 25ton 28ton 30ton liquid gas road trailer lpg tank semi trailer photo
PART 4: FACTORY CERTIFICATE:
PART 5: SUCESSFUL CASE
PART 6:SHIPPING:
PART 7: FAQ
New 24MT 26MT 28MT 30MT lpg tanker semi trailer LPG trailer tank Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. For standard products, delivery time is as below:Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .) Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification . We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Q9. Did you sell truck to our country before? A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .New 24MT 26MT 28MT 30MT lpg tanker semi trailer LPG trailer tank
