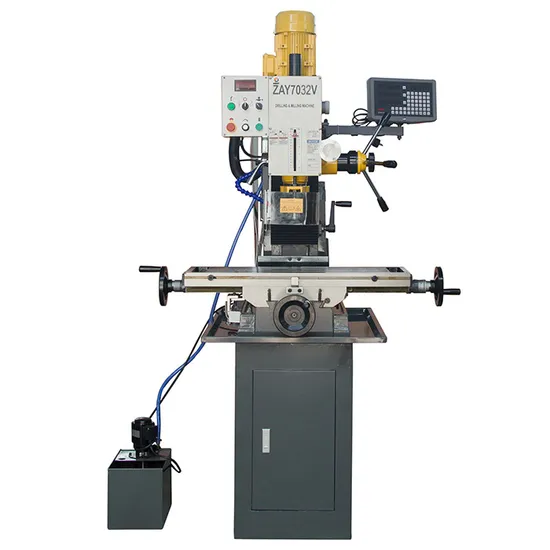

ZAY7032V variable speed manual drilling and milling machine with CE

US$1,200.00-1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7032V
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Machine Weight
373
Spindle Travel
130mm
Transport Package
Standard Plywood Package
Specification
CE, ISO
Trademark
WMTCNC
Origin
Anhui, China
HS Code
84592900
Production Capacity
50 Sets/ Month

Product Description

Features:
1. Variable speed; 2. Milling , drilling , tapping , boring and reaming. 3. Head swivels ±90°vertically;
4. Micro feed precision;
5. Adjustable gibs on table precision;
6. Strong rigidity, powerful cutting and precise positioning.
Specifications:

Specification
ZAY7032V
ZAY7040V
ZAY7045V
Max.Drilling capacity
32mm
40mm
45mm
Max. face mill capacity
63mm
63mm
80mm
Max. end mill capacity
20mm
20mm
32mm
Distance from spindle nose to table
400mm
400mm
400mm
Min. distance from spindle axis to column
285mm
285mm
285mm
Spindle travel
130mm
130mm
130mm
Spindle taper
MT3,MT4.R8
MT3 or R8
MT3 or R8
Range of spindle speed(2 steps)
100-530, 530-2800rpm
100-530, 530-2800rpm
100-530, 530-2800rpm
Swivel angle of headstock(perpendicular)
±45°
±45°
±45°
Table size
800*240mm
800×240mm
800×240mm
Forward and backward travel of table
175mm
175mm
175mm
Left and right travel of table
500mm
500mm
500mm
Motor power(DC)
1.1/1.1/1.5kw
1.1/1.1/1.5kw
1.1/1.1/1.5kw
N.W/G.W
325/375kgs
325/375kgs
325/375kgs
Packing size(L*W*H)
770*880*1160mm
770*880*1160mm
770*880*1160mm
Loading amount/20" container
36pcs
36pcs
36pcs
