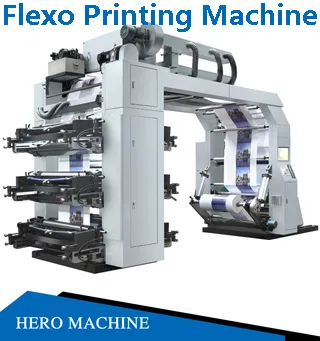

High Speed PVC UV Foil BOPP PE Inline Large Format 2 4 5 6 Color Label Paper Cup Plastic Film Bag Flexography Printing Machine Price

Product Description

HERO MACHINE IS FAMOUS BRAND IN CHINA.
Youtube Video website: http://herowu.en.made-in-china.com
We have type of flexo printing machine:
1,Ci Central Drum Flexo Printing Machine 200m/mins
2,Belt System Flexo Printing Machine 120m/mins
3,Gear System Flexo Printing Machine 80m/mins
4,Big Width Flexo Printing Machine 150m/mins
5,Adhesive Label Flexo Printing Machine 80m/mins
We can printing pe,pvc,bopp,opp,aluminum film,paper,non woven,tissue paper ETC.
Welcome to contact us!

Performance and Characteriestics

1. Easy operation, flexible starting, accurate color register.

2. the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .

4. the priting ink is spread by the anilox cylinder with even ink color.

5. Reliable drying system coordinated with high- speed rotation, it will automatically break circuit wehn the machine stops.

6.360° continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Machine Main Parameter

Model	HR8-1000
Printing material	PE,Plastic film
Machine Colors	2-8 Color
Max. printing material width	1050mm
Max. printing width	960mm
Max. Printing length(repeat)	7.5"~40"(190mm~1000mm)
Max. Mechanical speed	150m/min
Max. Printing speed	30-120m/min(one-side printing) 30-80m/min (double-side printing)
Register Precision	Crosswise: ±0.20mm; Lengthwise: ±0.20mm
Thickness of Plate	1.14mm,1.7mm,2.28mm,2.84mm
1 Set of Printing Cylinder on this machine	400mm (8Pcs)
Machine overall dimensions(L *W*H)	7.2m*2.4m*4.0m
Total machine power	70Kw
Power	Voltage 380V, 3 PH, 50 Hz (or at client's require)

Printing Unit:

Type	Stack Type
Machine Colors	2-8 Color
Principle of Work	Helical gears Drive, big gear in the center
Suitable Ink	Water-based ink or Oil-based ink
Printing Plate	Resin or Rubber
Constitution of Printing	Anilox roller, Rubber roller, Chrome plated roller, Printing cylinder
Anilox roller	Ceramic anilox roller 8pcs
Ink Running Way	Chambered doctor blade 8 Pcs( imported brand)
Ink motor	90W, independent motor
Ink Supply Device	Two-way diaphragm pump, inksupply cycle
Rubber roller (Ink transfer)	1 Set
Printing Pressure	Mechanical adjust
Adjusting of Register	By Manual
Printing plate lifting system	Automatic Hydraulic cylinder control printing roll up and down
Video inspection	Image inspection device 1 set

Q1:Are you a factory or trading company?
A1: We are established in 1985, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard, etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.

---
